Switch - Automatic
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0069 › Switch - Automatic
ConnectorsSwitch - Automatic
Switch - Automatic
transmission starter inhibitor / reverse light
Female
BLACK

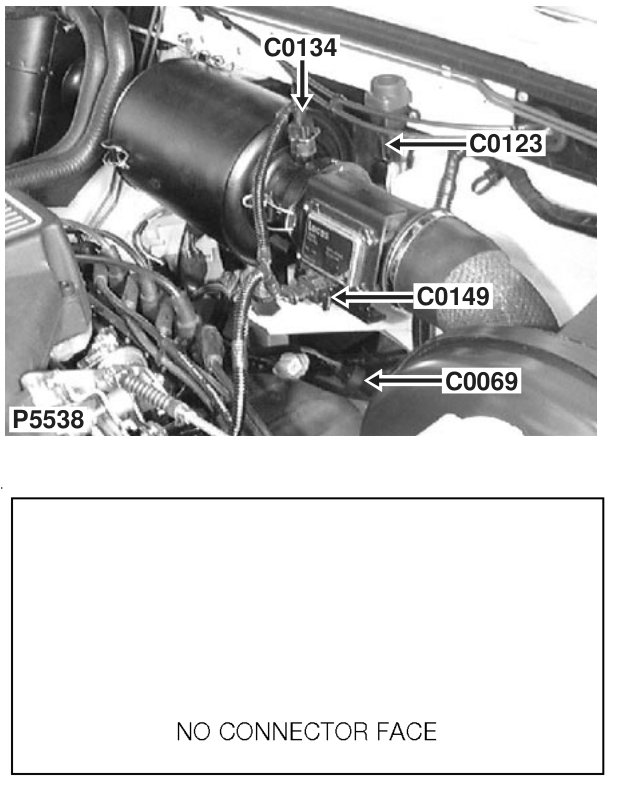

Above gearbox
| Cav | Col | CCT |
|---|---|---|
| 2 | G | ALL |
| 3 | GN | ALL |
| 4 | BO | ALL |
| 5 | BY | ALL |
