Sensor - Temperature - Fuel
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0184 › Sensor - Temperature - Fuel

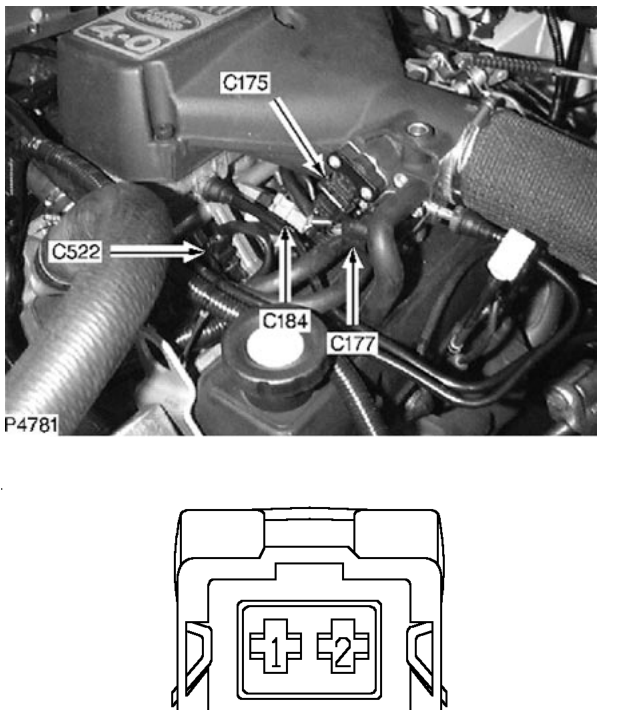

ConnectorsSensor - Temperature - Fuel
Sensor - Temperature - Fuel
rail
Female
GREY
Top of engine - LH side
| Cav | Col | CCT |
|---|---|---|
| 1 | RB | ALL |
| 2 | SW | ALL |
