Male
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section

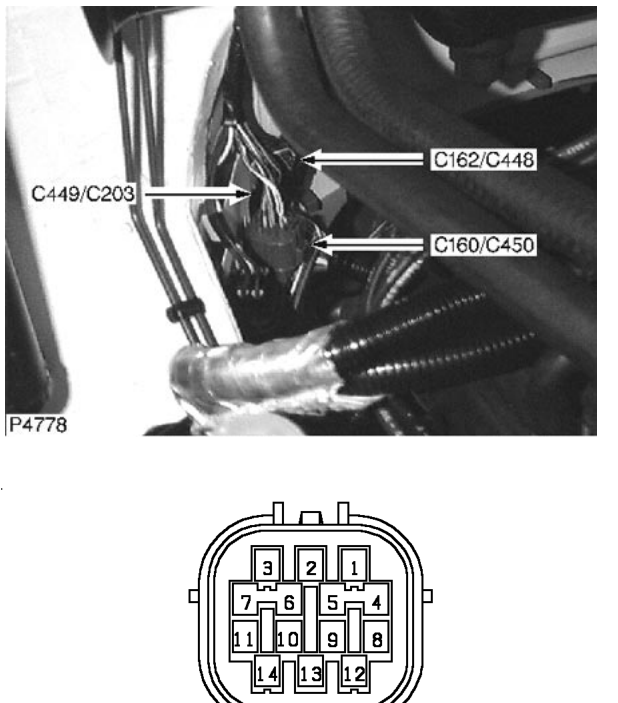

- C0203 › Male
ConnectorsMale
Engine harness to main harness
Male
GREY
RH side of bulkhead
| Cav | Col | CCT |
|---|---|---|
| 1 | WLG | ALL |
| 2 | WK | ALL |
| 3 | B | ALL |
| 4 | WG | ALL |
| 5 | BR | ALL |
| 6 | BU | ALL |
| 7 | NO | ALL |
| 11 | GW | ALL |
| 12 | SR | ALL |
| 13 | GB | ALL |
| 14 | PB | ALL |
