Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0376 › Female
ConnectorsFemale

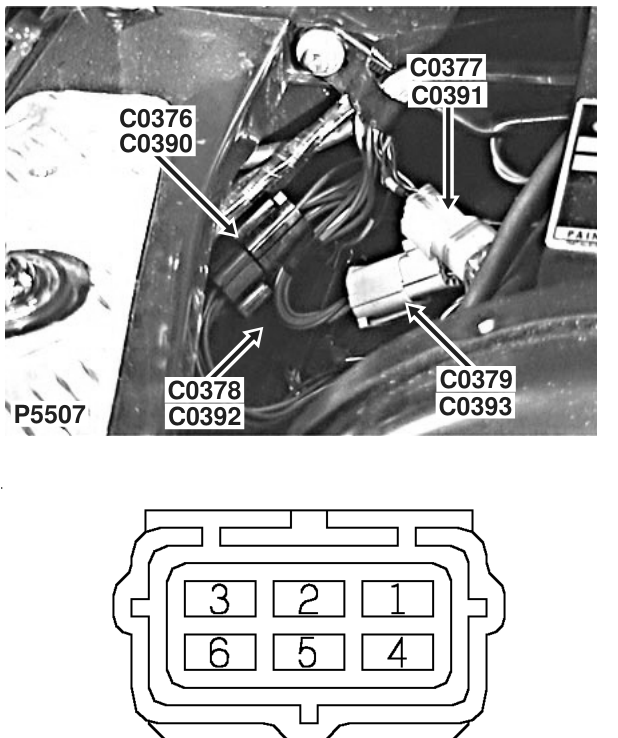

Main harness to chassis harness
Female
BLACK
RH side of bulkhead
| Cav | Col | CCT |
|---|---|---|
| 1 | RO | ALL |
| 2 | RB | ALL |
| 3 | RY | ALL |
| 4 | GR | ALL |
| 5 | GW | ALL |
| 6 | GP | ALL |
