Male
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0379 › Male
ConnectorsMale
Main harness to chassis harness

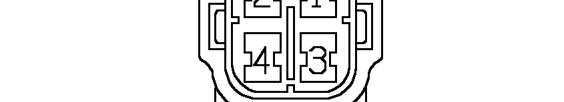

Male
NATURAL

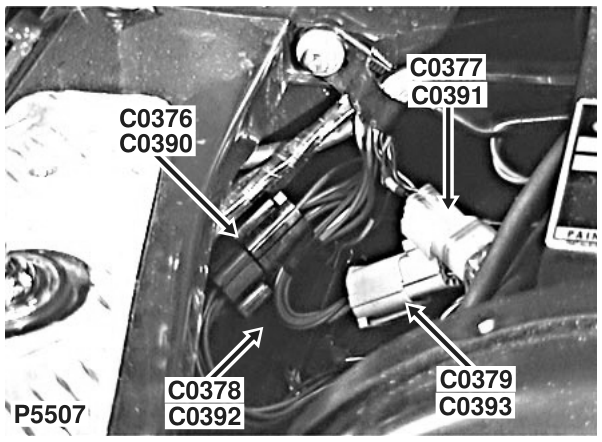

RH side of bulkhead
| Cav | Col | CCT |
|---|---|---|
| 1 | BW | ALL |
| 2 | BG | ALL |
| 3 | BN | ALL |
| 4 | BU | ALL |
