Male
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0391 › Male
ConnectorsMale

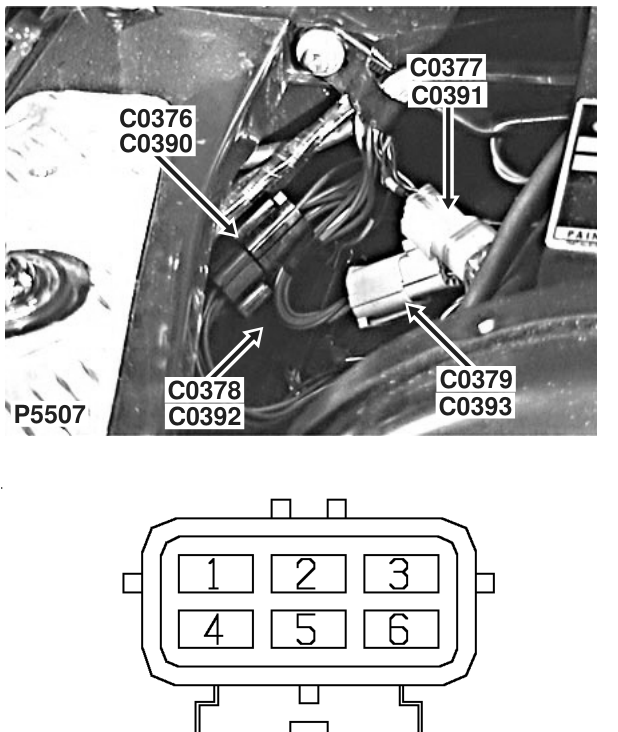

Chassis harness to main harness
Male
WHITE
RH side of bulkhead
| Cav | Col | CCT |
|---|---|---|
| 1 | GN | ALL |
| 2 | WB | ALL |
| 3 | G | ALL |
| 4 | NLG | ALL |
| 5 | RLG | ALL |
| 6 | P | ALL |
