Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0704 › Female
ConnectorsFemale

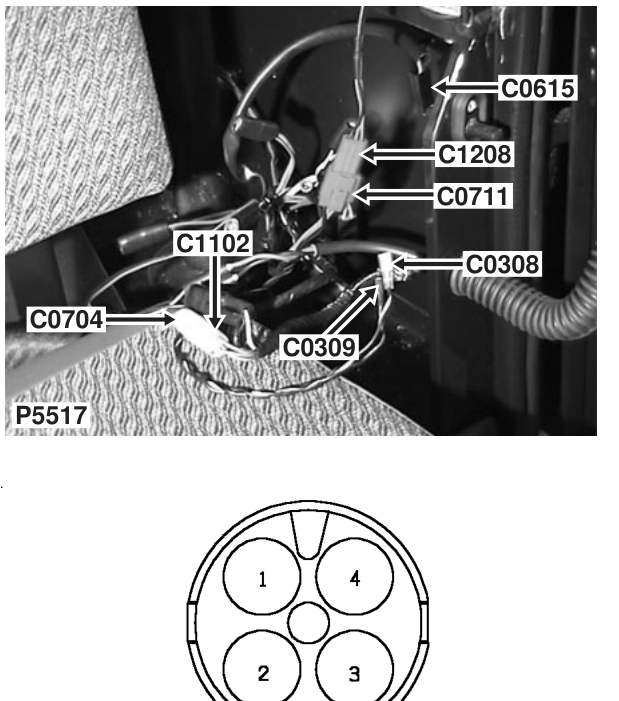

Chassis harness to tail door harness
Female
NATURAL
Behind RH rear speaker
| Cav | Col | CCT |
|---|---|---|
| 1 | G | ALL |
| 2 | NLG | ALL |
| 3 | RLG | ALL |
