Relay - Blower
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0817 › Relay - Blower
ConnectorsRelay - Blower
Relay - Blower
Female
YELLOW

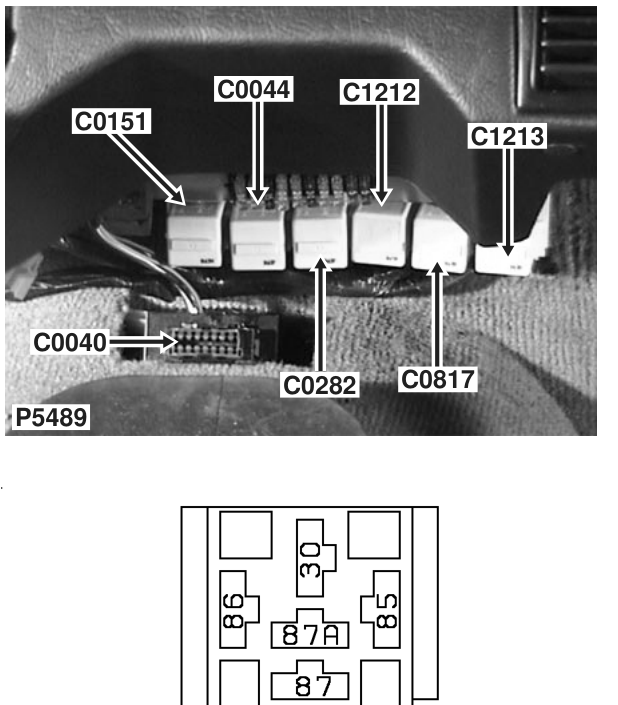

Behind front of centre console
| Cav | Col | CCT |
|---|---|---|
| 30 | BS | ALL |
| 85 | B | ALL |
| 86 | G | ALL |
| 87 | N | ALL |
