Male
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C1102 › Male
ConnectorsMale

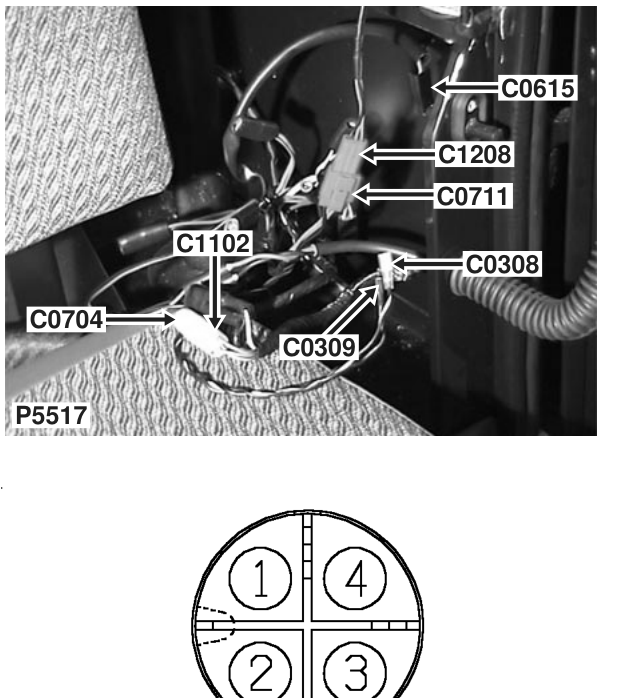

Tail door harness to chassis harness
Male
NATURAL
Behind RH rear speaker
| Cav | Col | CCT |
|---|---|---|
| 1 | G | ALL |
| 2 | RLG | ALL |
| 3 | NLG | ALL |
