Male
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C1211 › Male
ConnectorsMale

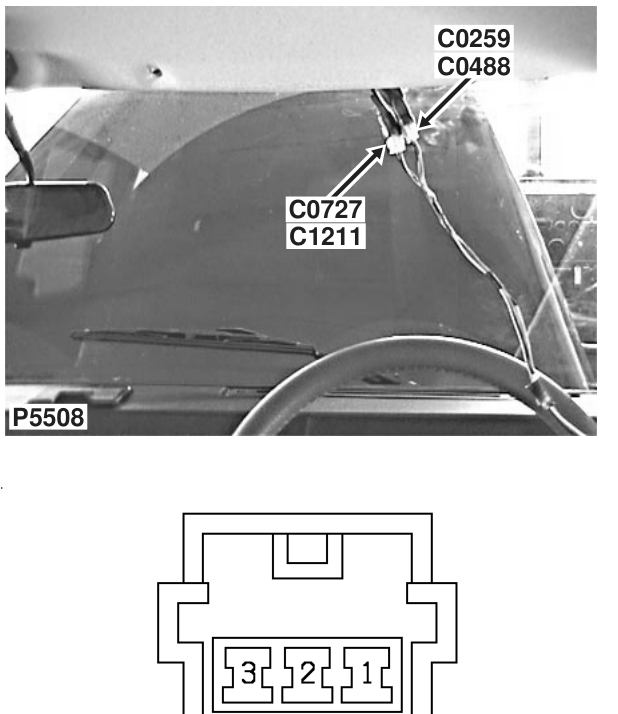

Main harness to interior lamp harness
Male
NATURAL
Behind centre headlining
| Cav | Col | CCT |
|---|---|---|
| 1 | WB | ALL |
| 2 | BN | ALL |
| 3 | B | ALL |
