Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C1213 › Female
ConnectorsFemale

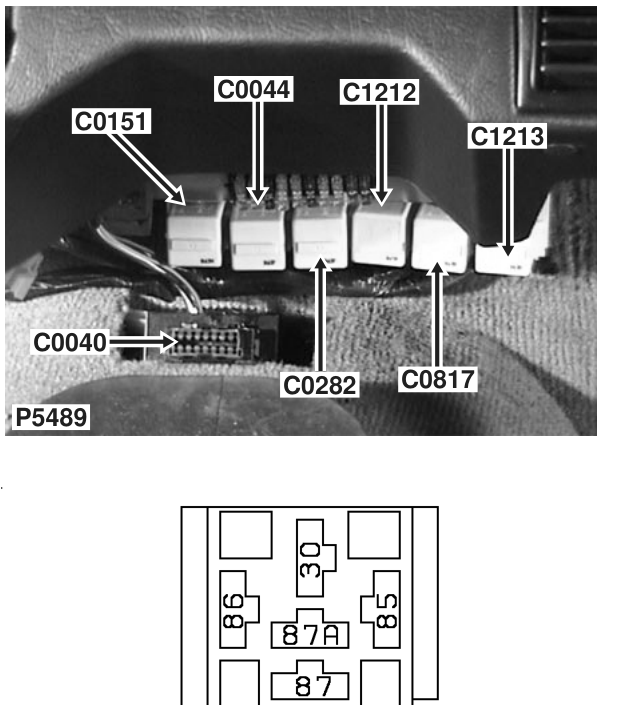

Relay - Compressor clutch - Air conditioning (A/C)
Female
YELLOW
Behind front of centre console
| Cav | Col | CCT |
|---|---|---|
| 30 | NW | ALL |
| 85 | UB | ALL |
| 86 | G | ALL |
| 87 | NK | ALL |
