Coolant circulation (engine hot) (Cooling system)

ENGINE COOLING The belt driven viscous fan and centrifugal water pump is located in the engine front cover with ports for Description circulation of coolant to both banks of cylinders and cylinder heads. Coolant returns to the top of the The V8i engine uses a pressurised cooling system radiator via ports in the inlet manifold where the and cross flow radiator which is supplied from a thermostat is mounted horizontally. separate expansion tank. The coolant radiator also Coolant also circulates through the vehicle heating incorporates a section at the side for cooling the system and is used to heat air entering the inlet engine oil. The transmission fluid cooler is mounted manifold plenum chamber. below the radiator.

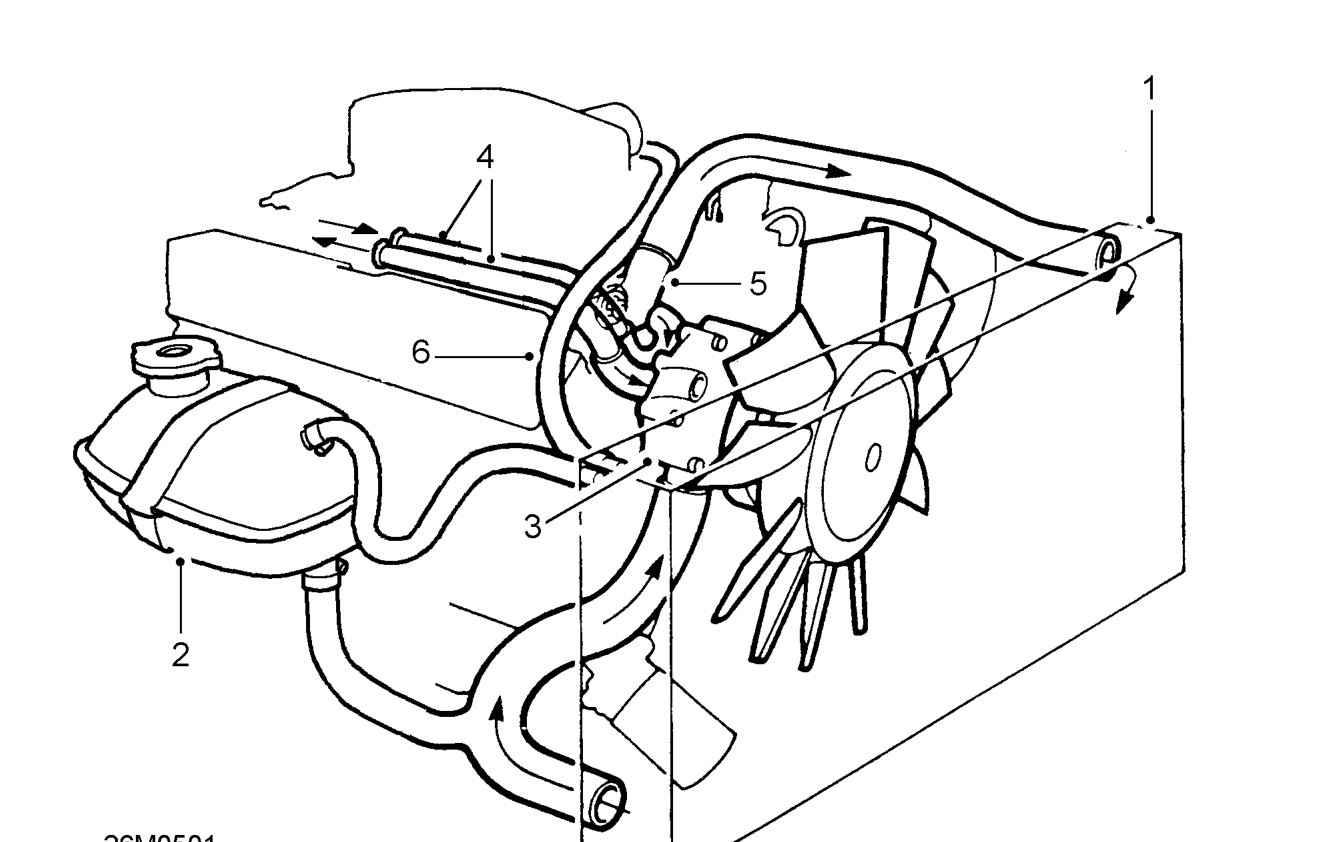

Coolant circulation (engine hot)

1. Cross flow radiator 2. Expansion tank 3. Viscous fan and water pump 4. Heater pipes 5. Thermostat 6. Plenum chamber connection
