Engine management system component location (Fuel system)

Make

Land Rover

Model

Defender V8i Workshop Manual Supplement

Section

Description and operation › Engine management system component location

Fuel systemEngine management system component location · page 1 of 2

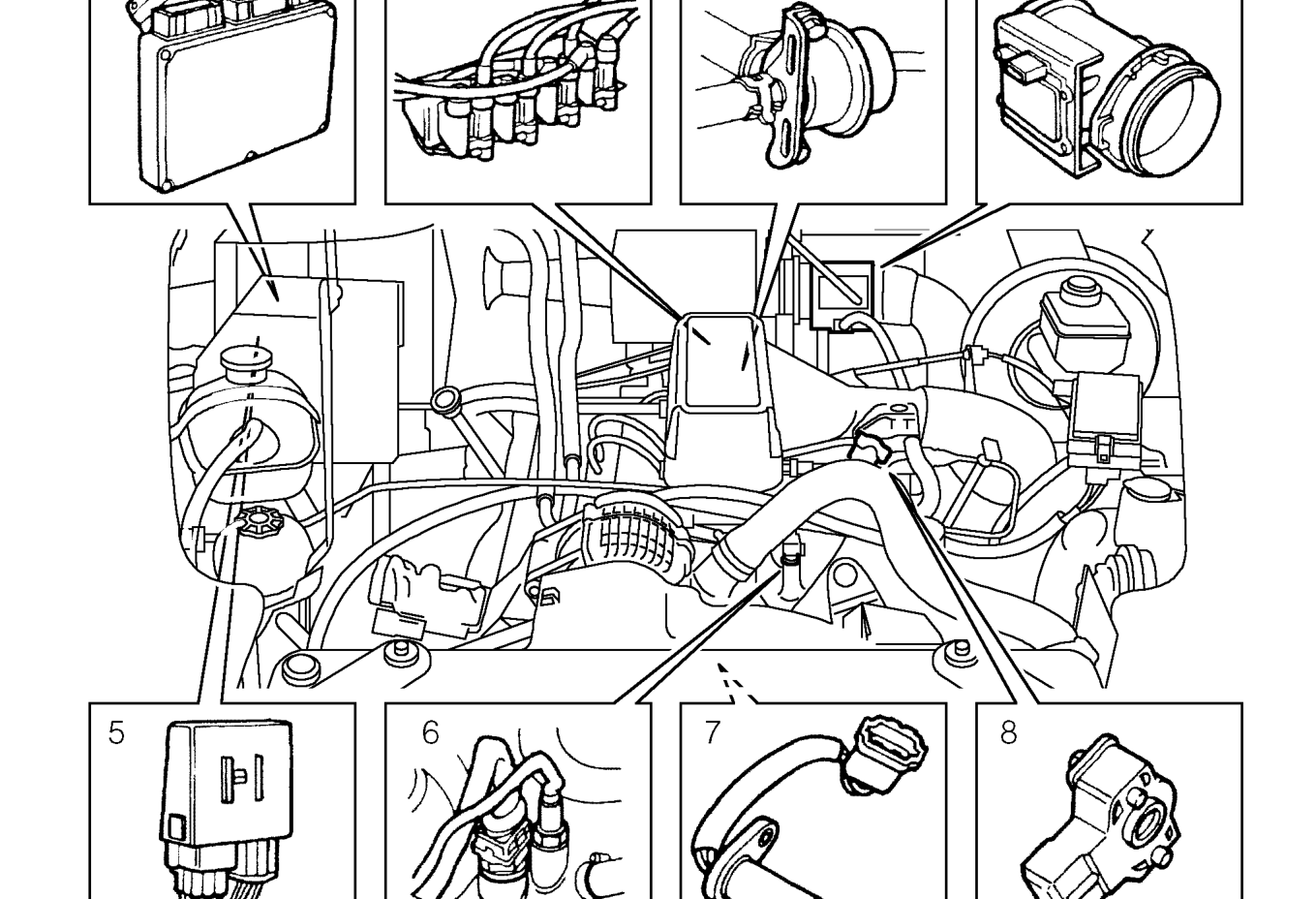

ENGINE MANAGEMENT SYSTEM COMPONENT LOCATION

1. Engine Control Module (ECM)
2. Ignition coils
3. Fuel pressure regulator
4. Mass air flow (MAF) sensor
5. Relay module

- Main relay - Fuel pump relay

6. Engine coolant temperature (ECT) sensor
7. Camshaft position (CMP) sensor
8. Throttle position (TP) sensor

09 Engine
