300Tdi Defender
CHASSIS AND BODY
39
REPAIR

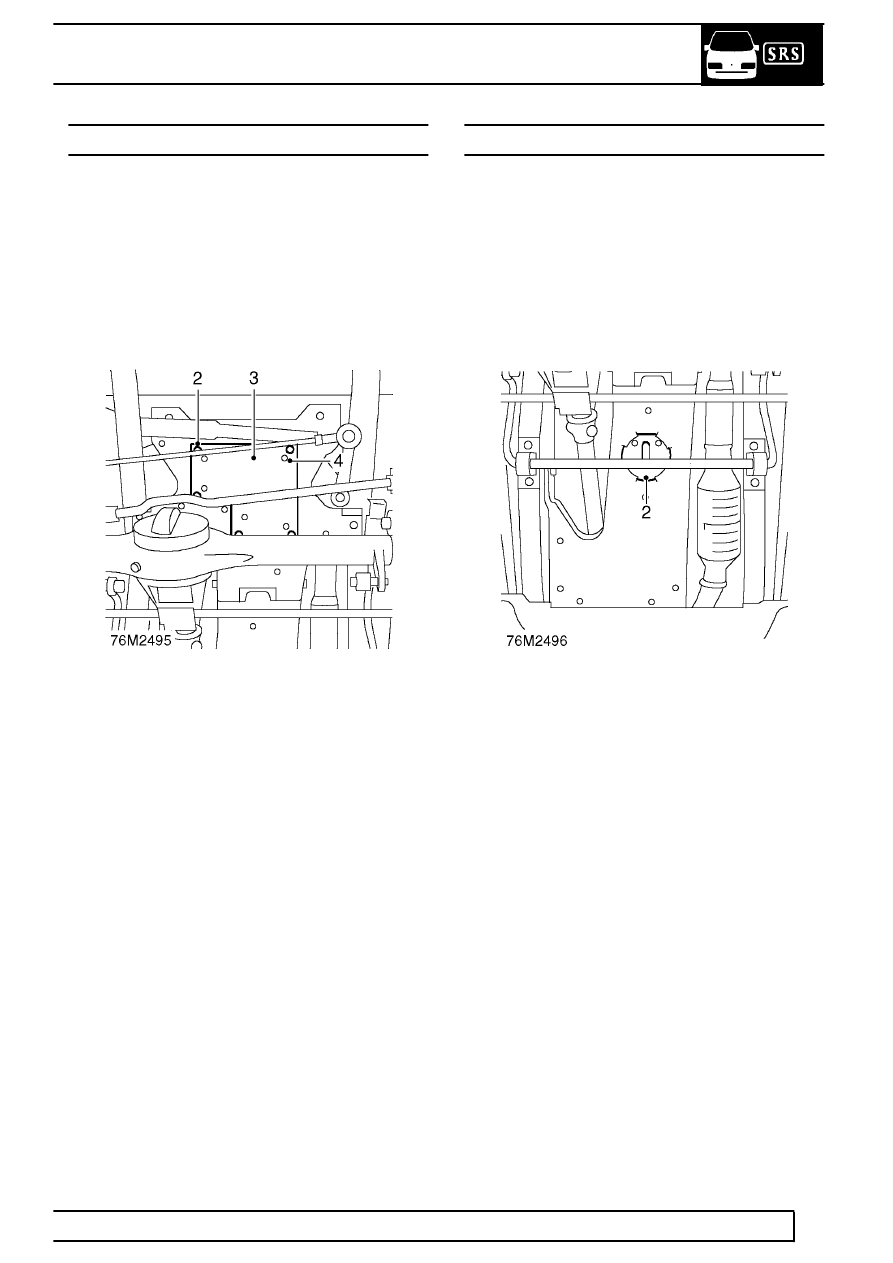

ACCESS PANEL - FRONT UNDERTRAY
Service repair no - 76.11.85 - Access panel
Service repair no - 76.11.83 - Acoustic pad
The access panel is provided in the front undertray to
enable fitment of the wading plug into the engine
timing cover.
Remove
1. Raise vehicle on ramp.
2. Remove 5 bolts securing access panel to front
undertray.
3. Remove access panel.
4. If necessary, remove 5 fasteners and release
acoustic pad from access panel.
Refit
5. If applicable, fit acoustic pad to access panel.
6. Fit access panel to front undertray, Tighten
fixings to
14 Nm (10 lbf/ft).
7. Lower ramp.
ACCESS PANEL - REAR UNDERTRAY
Service repair no - 76.11.84
The access panel is provided in the rear undertray to
enable fitment of the wading plug or timing tool
LRT-12-044 in the flywheel housing, and access to
the engine oil sump drain plug.
Remove
1. Raise vehicle on ramp.
2. Rotate access panel anti-clockwise to release
locking flanges.
3. Remove access panel from undertray.
Refit
4. Locate access panel flanges in undertray
apertures.
5. Rotate panel clockwise to secure in undertray.
6. Lower ramp.
