300Tdi Defender
76
CHASSIS AND BODY
38
REPAIR
Refit
12. If applicable, fit acoustic pad to undertray.
13. Fit undertray in position, ensuring flanges are
correctly located in rear undertray.
14. Secure undertray to chassis front crossmember,
bump stops and rear undertray. Tighten fixings
to
14 Nm (10 lbf/ft).
15. Fit propeller shaft to front axle and tighten nuts
to 47 Nm (35 lbf/ft).
16. Raise ramp to remove chassis support.
17. Lower ramp.

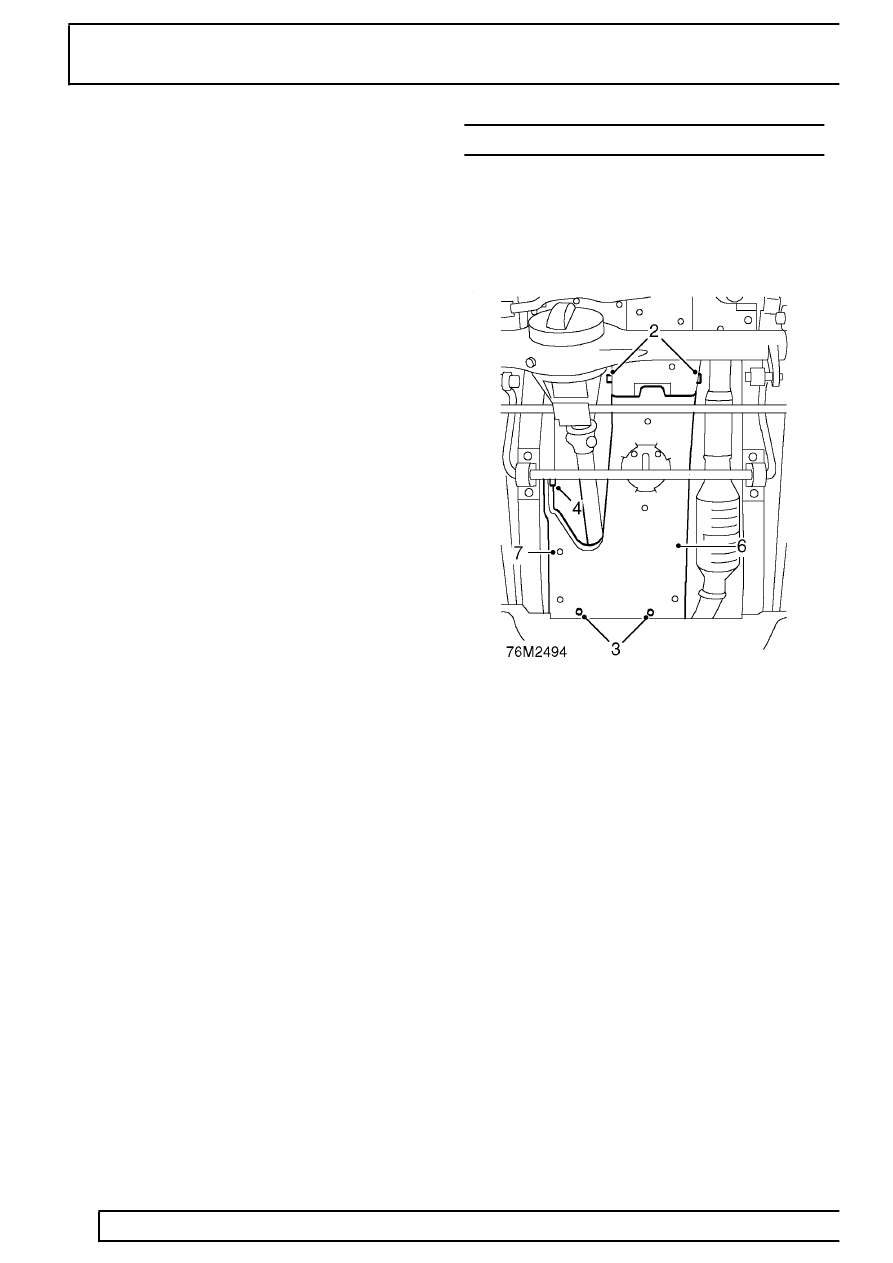

REAR UNDERTRAY
Service repair no - 76.11.80 - Rear undertray
Service repair no - 76.11.82 - Acoustic pad
Remove
1. Raise vehicle on ramp.
2. Remove 2 bolts securing sides of undertray to
front undertray.
3. Remove 2 bolts securing rear undertray to
chassis crossmember brackets.
4. Remove bolt securing undertray to RH side of
chassis.
5. Pull undertray rearwards to release from flanges
of front undertray.
6. Remove rear undertray.
7. If necessary, remove 7 fasteners and release
acoustic pad from undertray.
Refit
8. If applicable, fit acoustic pad to undertray.
9. Fit undertray in position, ensuring flanges of front
undertray are correctly located.
10. Secure undertray to chassis crossmember, RH
chassis side, and front undertray. Tighten fixings
to
14 Nm (10 lbf/ft).
11. Lower ramp.
