300Tdi Defender
76
CHASSIS AND BODY
12
REPAIR
EXTERIOR HANDLE - FRONT DOOR
Service repair no - 76.58.01
Remove
1. Remove door trim casing
See Door trim
casing .

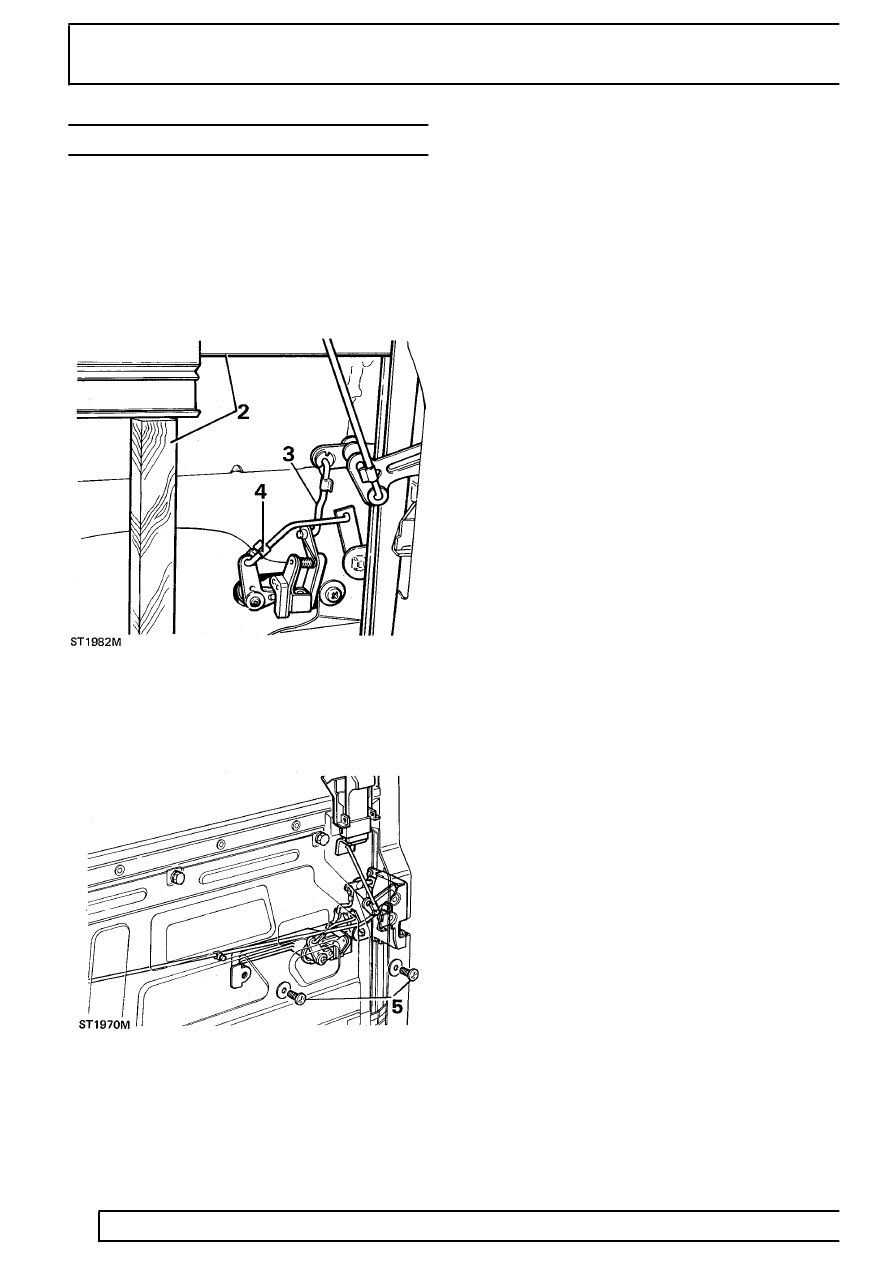

2. Remove mounting panel
See Mounting panel
- front door and support glass with timber.
3. Disconnect operating rod from handle
mechanism.
4. Disconnect rod from locking barrel lever.
5. Remove 2 screws and withdraw handle
assembly.
Refit
6. Fit handle to door ensuring that two bezels are in
position - flat faces towards door, and secure
with 2 screws.
7. Connect rod to handle operating lever and
secure with spring clip.
8. Connect rod to locking barrel lever and retain
with spring clip.
9. Fit mounting panel
See Mounting panel - front
door .
