FRONT HEADLINING - 90 STATION WAGON
Service repair no - 76.64.10

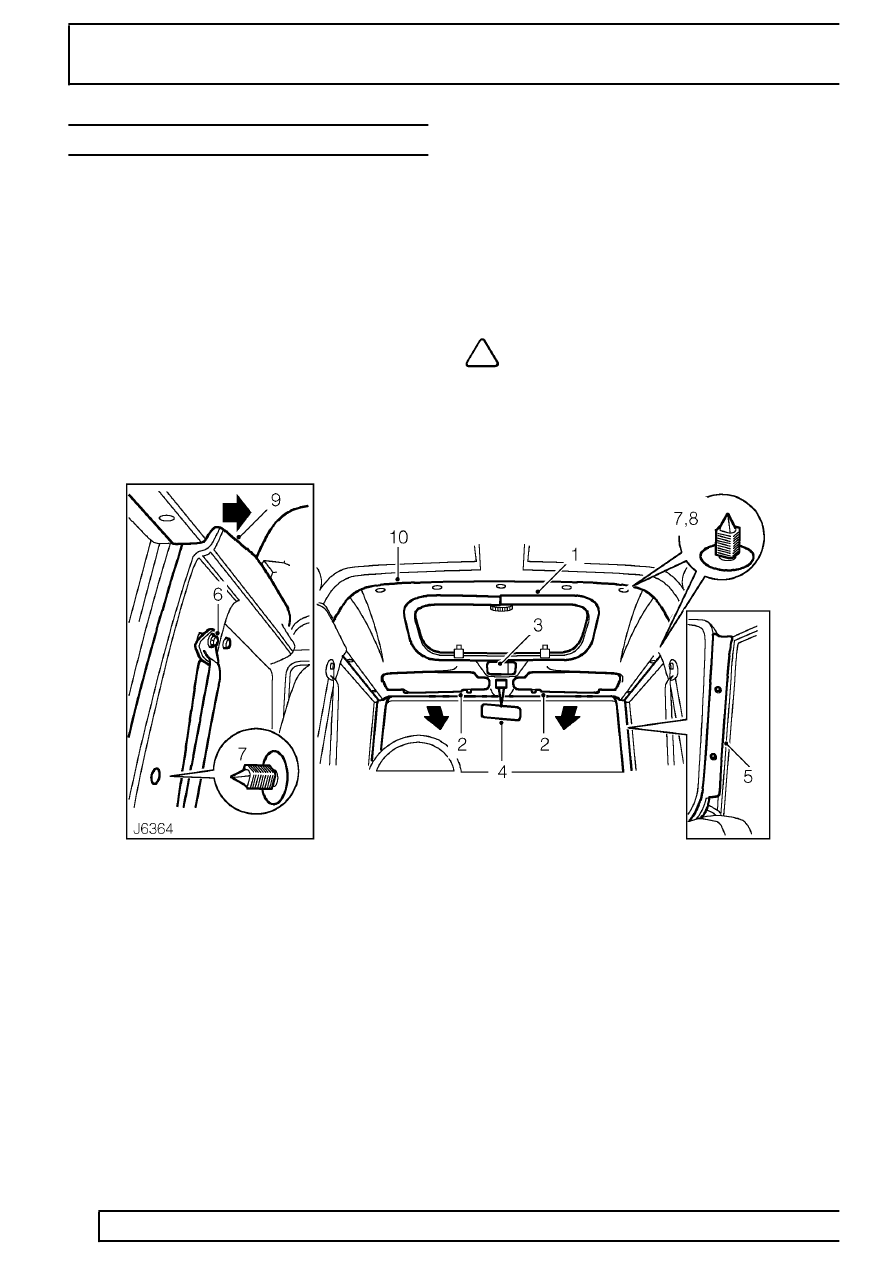

Remove
1. Remove sun roof headlining finisher.
2. Remove sun visors
See Sun visors .
3. Remove interior lamp
See ELECTRICAL,
Repair, Interior lamp .
4. Remove interior mirror and mounting plate
See
Interior mirror .
5. Remove 4 retaining screws and detach both ’A’
post trims.
6. Remove caps and unscrew front seat belt fixing
bolts from ’B’ posts.
7. Carefully prise side trim panel cap fastener from
’B’ posts.
8. Carefully prise 2 cap fasteners, from both sides,
securing headlining to body at door aperture.
9. Carefully prise out 5 cap fasteners securing front
and rear headlinings to roof.
10. From both sides, pull side trim panel inwards
enough to release rear corners of front
headlining.
11. Lower headlining and remove from vehicle.
NOTE: Take care not to bend the
headlining on removal and refitting.
Refit
12. With assistance, raise headlining to roof.
13. Carefully pull side trim panel inwards, on both
sides, and slide headlining behind trim panel.
14. Position front headlining into recess of rear
headlining and secure both to roof mounting
brackets with 5 cap fasteners.
15. Secure both sides of front headlining to body at
door apertures with cap fasteners.
16. Fit side cap fasteners at ’B’ posts.
17. Secure seat belts to ’B’ posts and tighten bolts to
32 Nm (24 lbf/ft). Fit caps to bolts.
18. Fit ’A’ post trims.
19. Fit interior mirror
See Interior mirror .
20. Fit interior lamp
See ELECTRICAL, Repair,
Interior lamp .
21. Fit sun visors
See Sun visors .
22. Fit sun roof headlining finisher.
