Rear Headlining for 90 Station Wagon | 300Tdi Defender
CHASSIS AND BODY
27
REPAIR
REAR HEADLINING - 90 STATION WAGON
Service repair no - 76.64.11
Remove
1. Remove side trim panels
See Side trim panel .
2. Remove rear end lining
See Rear end lining .
3. Remove rear interior lamp
See ELECTRICAL,
Repair, Interior lamp .

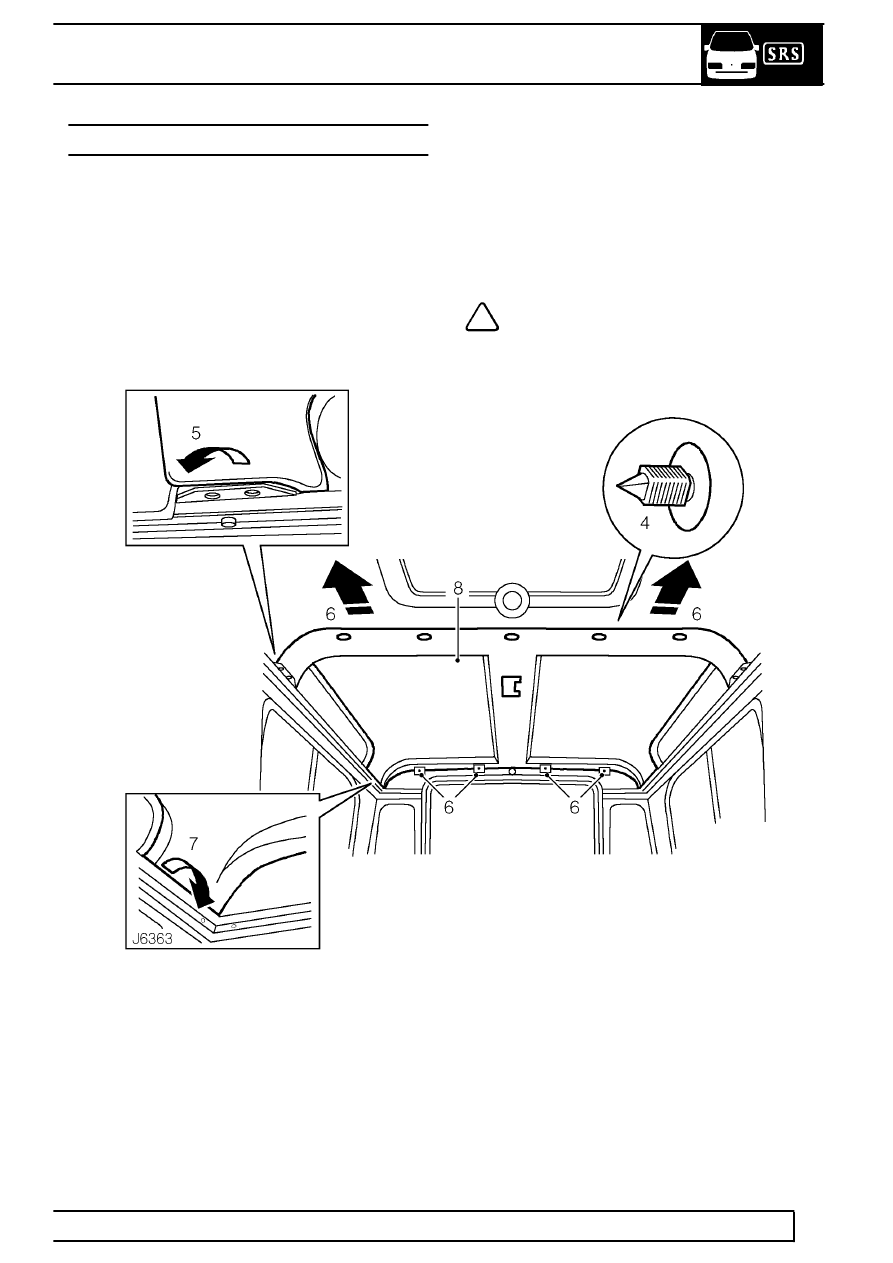

4. Carefully prise out 5 trim studs securing rear and
front headlining to roof mounting brackets.
5. Release front corners of headlining from cant
rail, on both sides.
6. Pull headlining forwards sufficiently to clear rear
end lining mounting brackets.
7. Release rear corners of headlining from cant rail,
on both sides.
8. Lower rear headlining from roof and remove
from vehicle.
NOTE: Take care not to bend headlining
on removal and refitting.
Refit
9. With assistance, position rear headlining to roof
and locate rear corners in cant rail.
10. Push headlining rearwards and position over
rear end lining mounting brackets.
11. Locate front corners of headlining in cant rail.
12. Position front edge of rear headlining over front
headlining and secure with trim studs.
13. Adjust rear headlining to achieve good fit at all
corners.
14. Fit rear interior lamp
See ELECTRICAL,
Repair, Interior lamp .
15. Fit rear end lining
See Rear end lining .
16. Fit side trim panels
See Side trim panel .
