TD5 Defender
86
ELECTRICAL
16
DESCRIPTION AND OPERATION
CDL Using the Key
The driver and the passenger front doors are fitted with key barrel locks. Using the vehicle key in the passenger
door will only lock or unlock that door. Using the key in the drivers door will operate the CDL system and lock or
unlock all doors.
NOTE: The passenger door key barrel is connected to the door latch and has no electrical input to
the anti-theft alarm ECU. The driver door key barrel is also connected to the door latch and its
operation is monitored by the ECU only via the latch motor and the two wires connected to it.
When the vehicle is locked using the key in the drivers door, only CDL and perimetric protection is invoked.
Volumetric protection and active immobilisation is not initiated.
CDL Using the Remote Handset
The remote handset has two buttons; lock and unlock. A single press on the lock button will lock all doors and
invoke perimetric and volumetric protection and active immobilisation. Remote locking is inhibited if the
transponder coil senses that the key is in the ignition switch.
When the vehicle is locked, a single press of the unlock button will unlock all doors and disable perimetric and
volumetric protection. Immobilisation is only disabled using the transponder coil and the remote handset or the
EKA procedure.

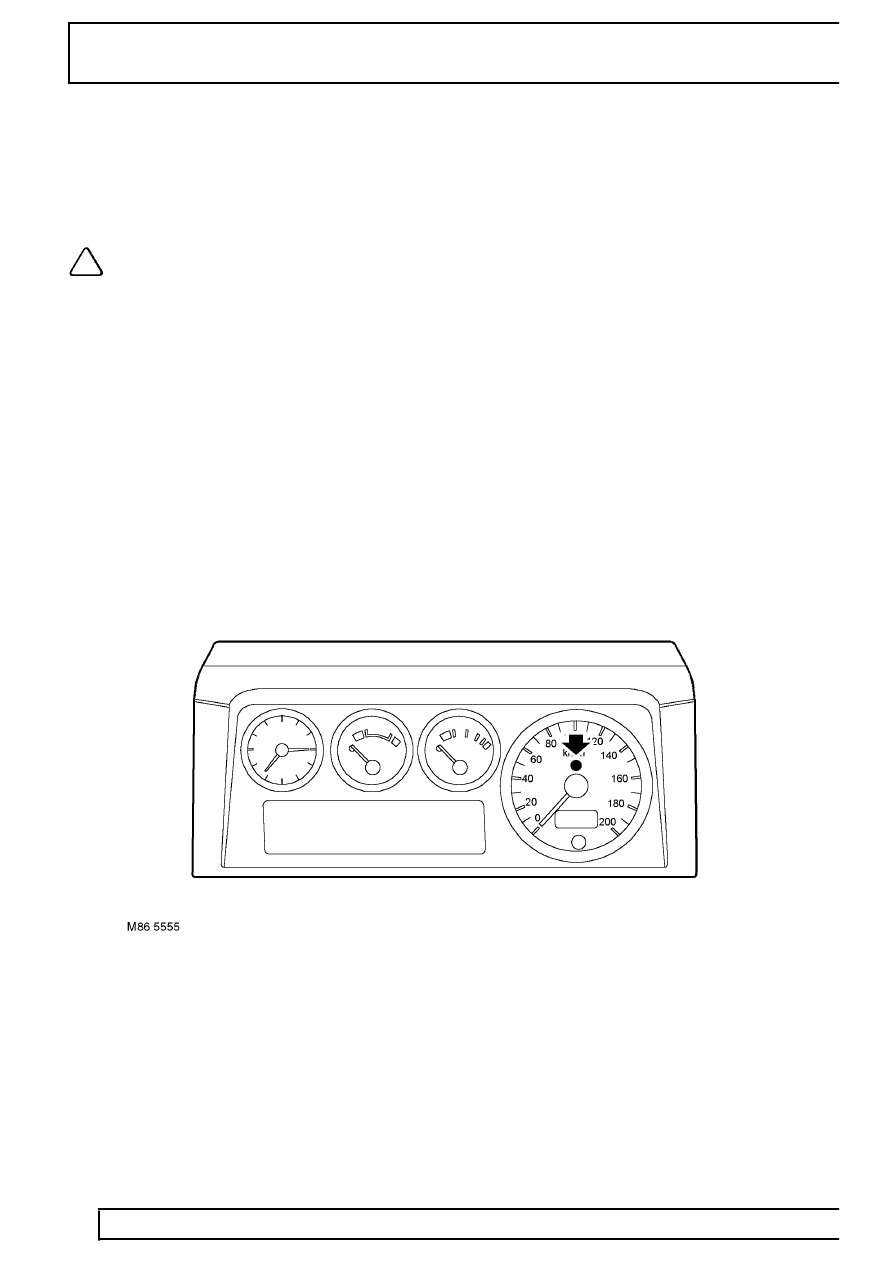

Security LED
In addition to the alarm system status indications, the security LED also displays CDL system status.
The system confirms that the drivers door is open by illuminating the LED for the 10 second confirmation period. If
any other door or the bonnet is open, the LED remains unlit for the 10 second confirmation period. After the 10
second confirmation period the LED reverts to the slow flash deterrent mode if the alarm is armed.
