Land Rover Discovery II Circuit Diagrams (2003 model year)09 · Door mirrors
09 · Body & interior

Door mirrors

Make
Land Rover
Model
Discovery II Circuit Diagrams
Year
2003 model year
Section
Door mirrors › Door mirrors
Door mirrorsDoor mirrors

DOOR MIRRORS

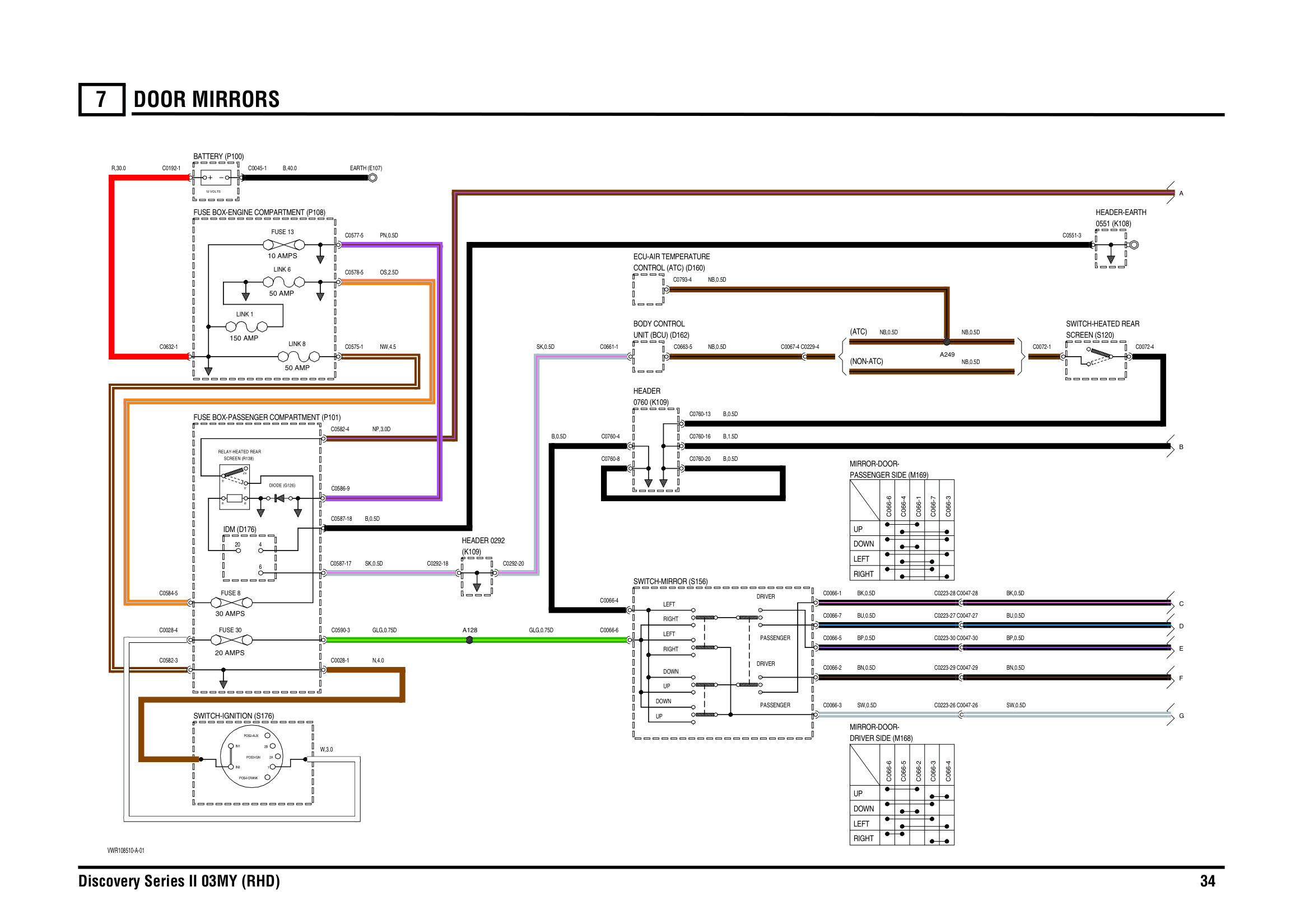

Door Mirrors circuit diagram
