Description: Headlamp-LH
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0009 Headlamp-LH › Description: Headlamp-LH

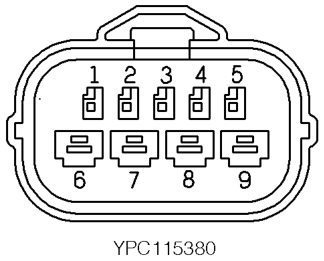

ConnectorsDescription: Headlamp-LH
| Cav 1 | Col B | Cct ALL |
| 2 | RB | ALL |
| 3 | GR | ALL |
| 4 | RB | ALL |
| 5 | UY | ALL |
| 6 | B | ALL |
| 7 | US | ALL |
| 8 | UK | ALL |
| 9 | B | ALL |
Description: Headlamp-LH

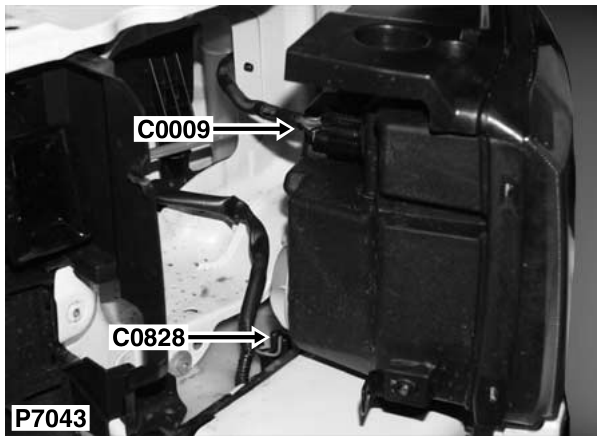

Location: Front of vehicle - LH side
Colour: BLACK Gender: Female
