Colour: LIGHT GREY Gender: Female
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0018 Header -Earth › Colour: LIGHT GREY Gender: Female

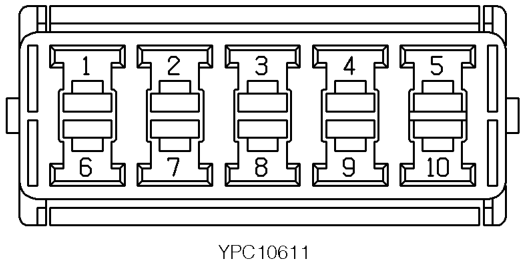

ConnectorsColour: LIGHT GREY Gender: Female
| Cav 1 | Col B | Cct ALL |
| 2 | B | 2 |
| 3 | B | 13 |
| 4 | B | ALL |
| 5 | B | ALL |
| 6 | B | ALL |
| 7 | B | ALL |
| 8 | B | ALL |
| 9 | B | ALL |
| 10 | B | ALL |

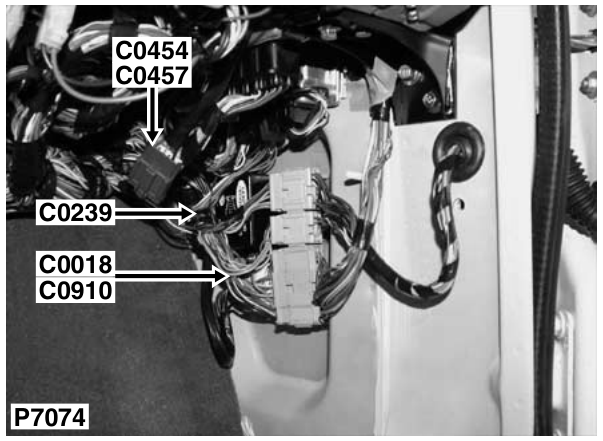

Description: Header -Earth Location: RH 'A' post
Colour: LIGHT GREY Gender: Female
