Land Rover Discovery II Electrical Library (1999-2003)05 · Connectors
05 · General

Colour: RED Gender: Female

Make
Land Rover
Model
Discovery II Electrical Library
Year
1999–2003
Section
C0021 Pump-Washer-Rear screen › Colour: RED Gender: Female
ConnectorsColour: RED Gender: Female
Cav
1
Col
LGS
Cct
ALL
2BALL
Diagram

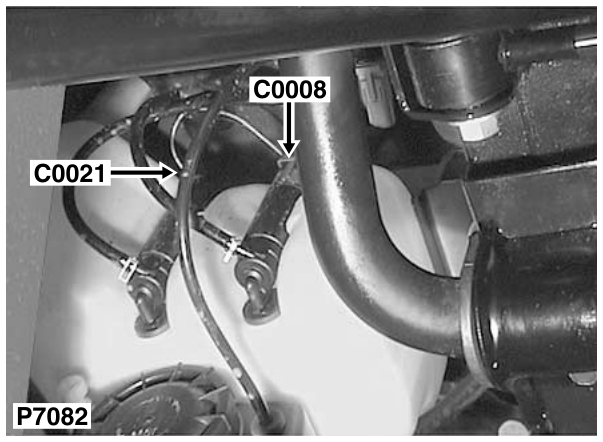

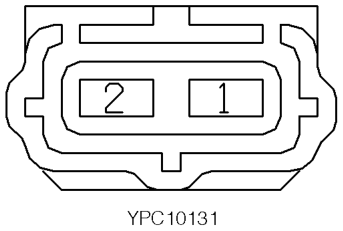

Description: Pump-Washer-Rear screen Location: Behind LH side of front bumper

Description: Pump-Washer-Rear screen Location: Behind LH side of front bumper

Colour: RED Gender: Female
