Description: Switch-Ignition - RHD
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0028 Switch-Ignition - RHD › Description: Switch-Ignition - RHD

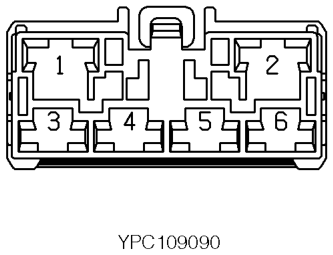

ConnectorsDescription: Switch-Ignition - RHD
| Cav 1 | Col N | Cct ALL |
| 3 | LGW | ALL |
| 4 | W | ALL |
| 5 | Y | ALL |
| 6 | WR | ALL |
Description: Switch-Ignition - RHD

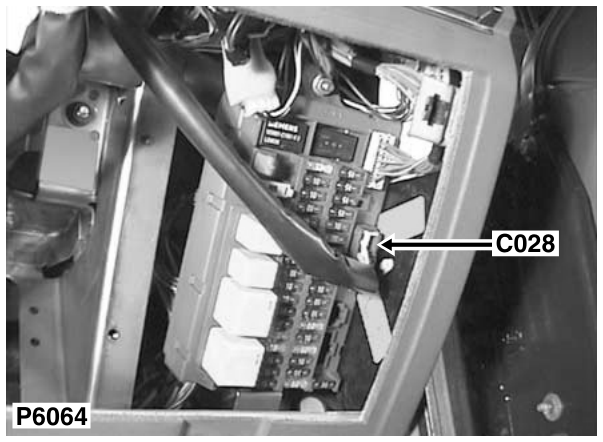

Location: Behind RH side of fascia
Colour: BROWN Gender: Female
