Colour: NATURAL Gender: Female
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0058 Switch-Blower motor › Colour: NATURAL Gender: Female

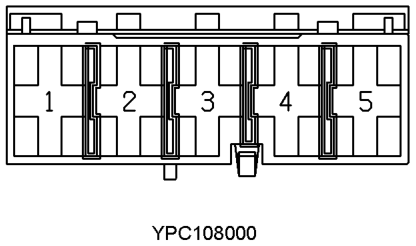

ConnectorsColour: NATURAL Gender: Female
| Cav 1 | Col N | Cct 16 |
| 2 | PU | 16 |
| 3 | G | 16 |
| 4 | BO | 16 |
| 5 | B | 16 |

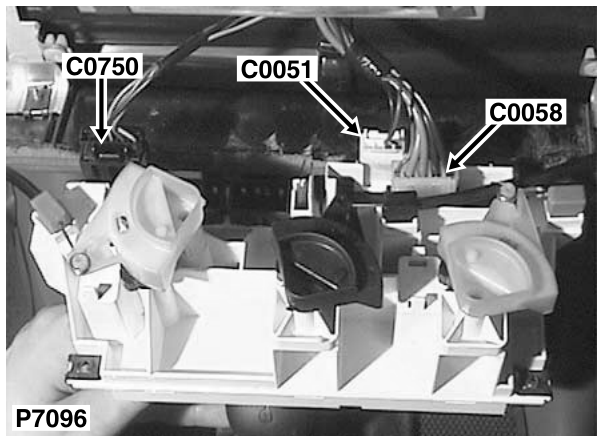

Description: Switch-Blower motor Location: Behind heater control panel
Colour: NATURAL Gender: Female
