Description: Head Unit-Audio System
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0092 Head Unit-Audio System › Description: Head Unit-Audio System
ConnectorsDescription: Head Unit-Audio System
| Cav 1 | Col BG | Cct 30 |
| 2 | BU | 30 |
| 3 | BK | 30 |
| 4 | BR | 30 |
| 5 | BW | 30 |
| 6 | BN | 30 |
| 7 | BY | 30 |
| 8 | BO | 30 |

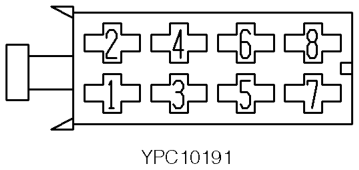

Description: Head Unit-Audio System

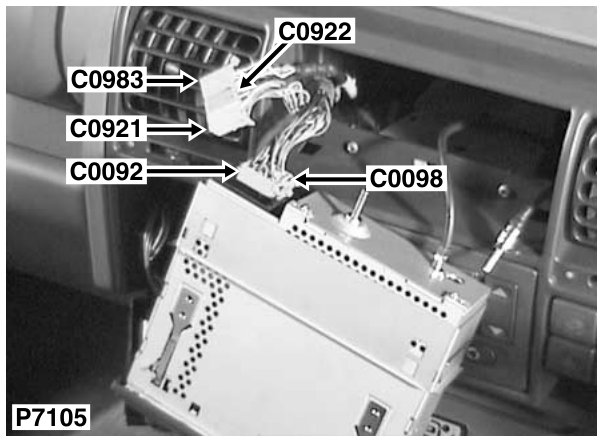

Location: Behind radio
Colour: BROWN Gender: Female
