Description: Head Unit-Audio System
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0098 Head Unit-Audio System › Description: Head Unit-Audio System
ConnectorsDescription: Head Unit-Audio System
| Cav 1 | Col K | Cct 31 |
| 1 | PO | 32 |
| 2 | GN | 31 |
| 2 | SB | 32 |
| 3 | PO | 31 |
| 3 | SR | 32 |
| 4 | P | 30 |
| 5 | RU | 30 |
| 6 | RN | 30 |
| 7 | LGP | ALL |
| 8 | B | ALL |

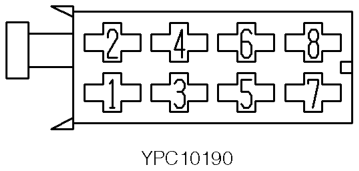

Description: Head Unit-Audio System

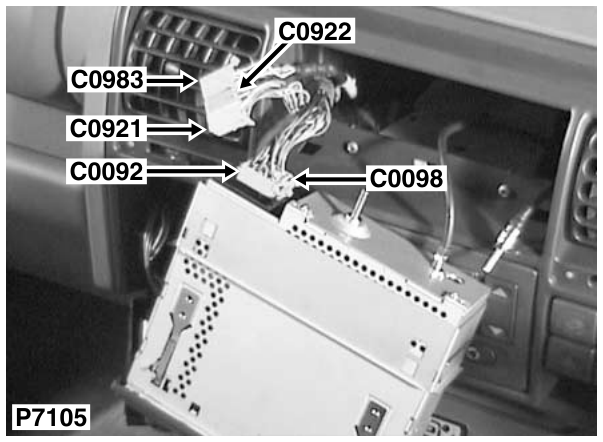

Location: Behind radio
Colour: GREY Gender: Female
