Colour: GREEN Gender: Female
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0131 Switch-Heated front screen › Colour: GREEN Gender: Female

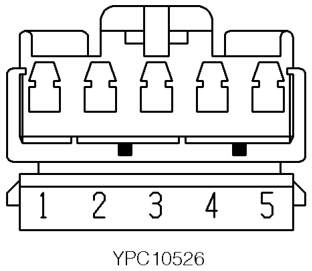

ConnectorsColour: GREEN Gender: Female
| Cav 1 | Col KO | Cct ALL |
| 2 | RN | ALL |
| 4 | B | ALL |
| 5 | PS | ALL |

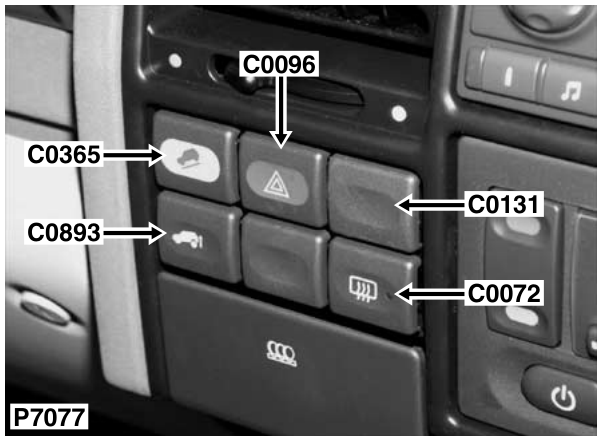

Description: Switch-Heated front screen Location: Behind centre of fascia
Colour: GREEN Gender: Female
