Colour: GREY Gender: Female

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0203 Engine harness to main harness › Colour: GREY Gender: Female

ConnectorsColour: GREY Gender: Female

Cav 1	Col SY	Cct 34
2	RB	34
3	W	ALL
4	GN	ALL
5	GY	ALL
6	SP	ALL
7	WN	ALL
8	GU	ALL
9	NY	ALL
10	UP	ALL
11	RK	ALL
12	KO	18
13	BY	18
14	NK	ALL

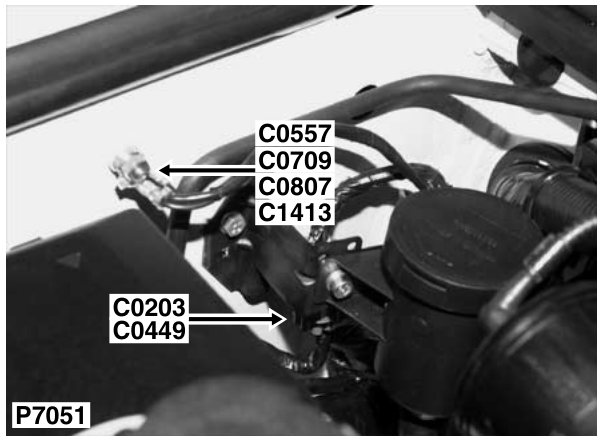

Description: Engine harness to main harness Location: Rear RH side of engine compartment

Colour: GREY Gender: Female
