Colour: LIGHT GREY Gender: Female
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0220 Switch-Dual pressure › Colour: LIGHT GREY Gender: Female
ConnectorsColour: LIGHT GREY Gender: Female
| Cav 1 | Col YB | Cct 15 |
| 2 | YS | ALL |

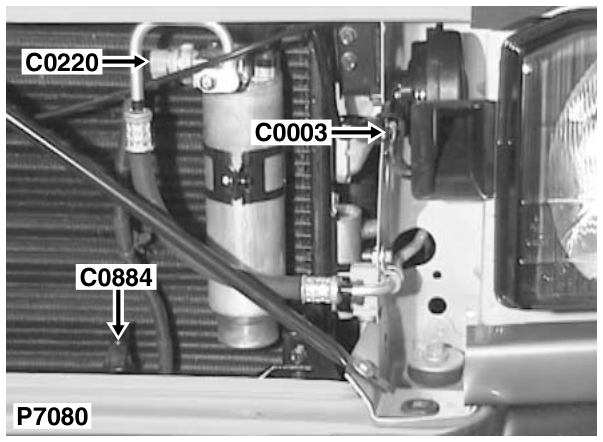

Description: Switch-Dual pressure Location: Behind the front grille
Colour: LIGHT GREY Gender: Female
