Colour: BLACK Gender: Female
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0228 Pump-Cruise control - LHD › Colour: BLACK Gender: Female

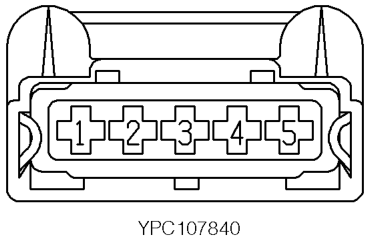

ConnectorsColour: BLACK Gender: Female
| Cav 2 | Col GP | Cct 3 |
| 3 | BY | 3 |
| 4 | BR | 3 |
| 5 | WU | 3 |

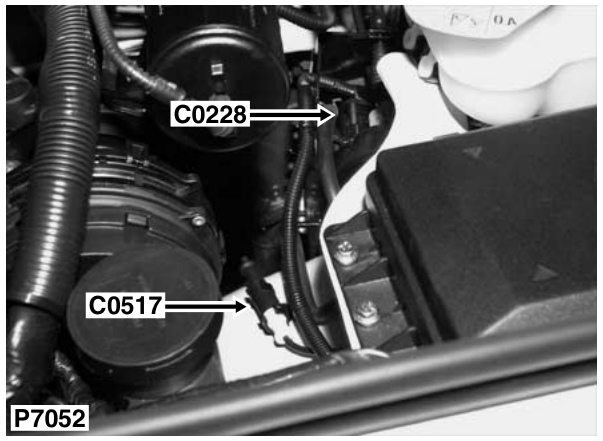

Description: Pump-Cruise control - LHD Location: Rear RH side of engine compartment
Colour: BLACK Gender: Female
