Description: Instrument Pack
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0230 Instrument Pack › Description: Instrument Pack
ConnectorsDescription: Instrument Pack
| Cav 1 | Col PW | Cct ALL |
| 3 | US | ALL |
| 4 | YR | ALL |
| 5 | YG | ALL |
| 6 | WN | ALL |
| 7 | BLG | ALL |
| 8 | BU | ALL |
| 9 | PK | ALL |
| 10 | KO | ALL |
| 11 | NY | ALL |
| 12 | RN | ALL |
| 13 | KB | ALL |
| 14 | GB | ALL |
| 15 | WS | ALL |
| 16 | KG | ALL |
| 17 | B | ALL |
| 18 | B | ALL |
| 19 | LG | ALL |
| 20 | PO | ALL |

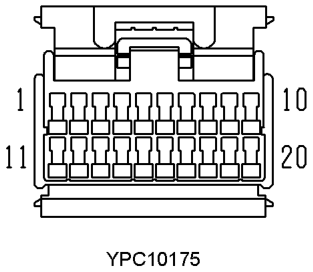

Description: Instrument Pack

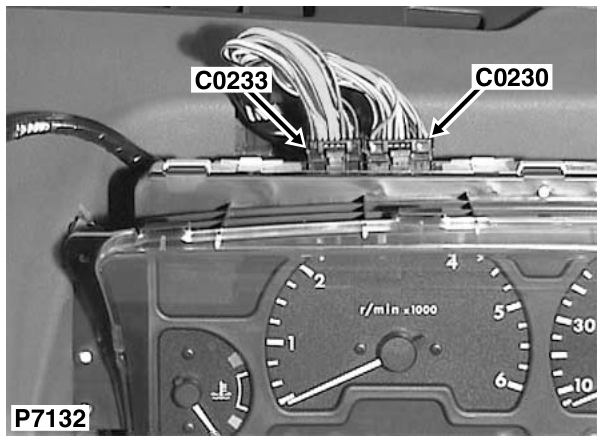

Location: Behind instrument pack
Colour: BLACK Gender: Female
