Description: Switch-Window-Front-RH
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0242 Switch-Window-Front-RH › Description: Switch-Window-Front-RH
ConnectorsDescription: Switch-Window-Front-RH
| Cav 1 | Col B | Cct ALL |
| 3 | BK | ALL |
| 4 | BU | ALL |
| 6 | RN | ALL |

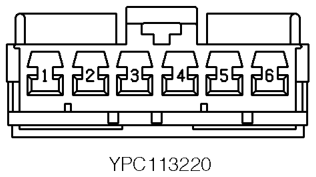

Description: Switch-Window-Front-RH

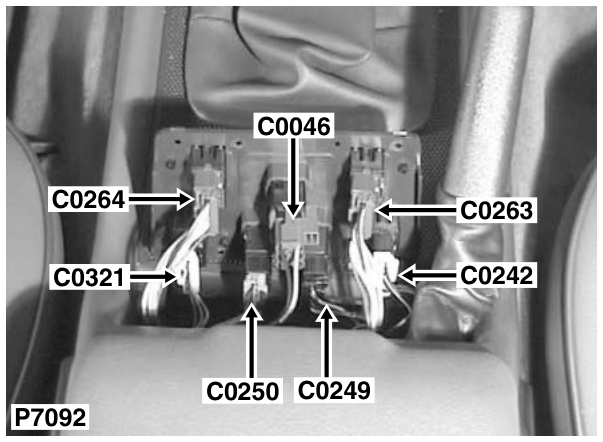

Location: Behind centre console
Colour: WHITE Gender: Female
