Description: DCU-Airbag
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0256 DCU-Airbag › Description: DCU-Airbag
ConnectorsDescription: DCU-Airbag
| Cav 1 | Col RY | Cct ALL |
| 2 | R | ALL |
| 3 | WY | ALL |
| 4 | W | ALL |
| 6 | N | ALL |
| 7 | NR | ALL |
| 9 | K | ALL |
| 10 | O | ALL |
| 11 | OR | ALL |
| 13 | YR | ALL |
| 14 | B | ALL |
| 15 | G | ALL |

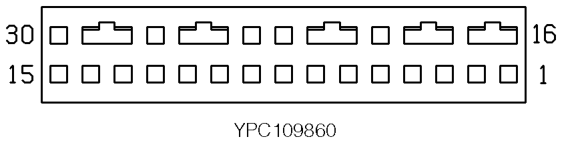

Description: DCU-Airbag

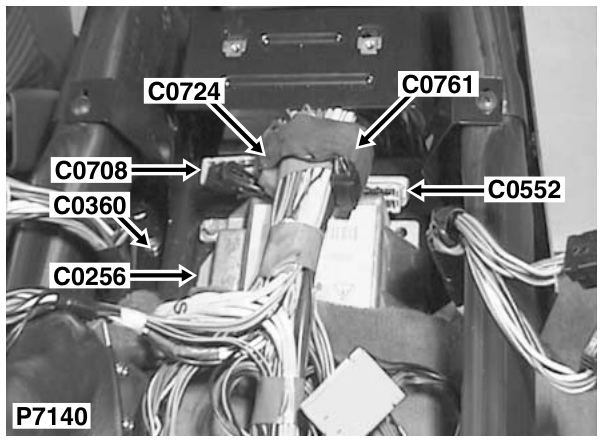

Location: Behind centre console
Colour: YELLOW Gender: Female
