Description: Switch-Window-Front-LH
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0321 Switch-Window-Front-LH › Description: Switch-Window-Front-LH
ConnectorsDescription: Switch-Window-Front-LH
| Cav 1 | Col B | Cct ALL |
| 3 | BR | ALL |
| 4 | BS | ALL |
| 6 | RN | ALL |

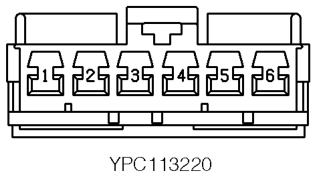

Description: Switch-Window-Front-LH

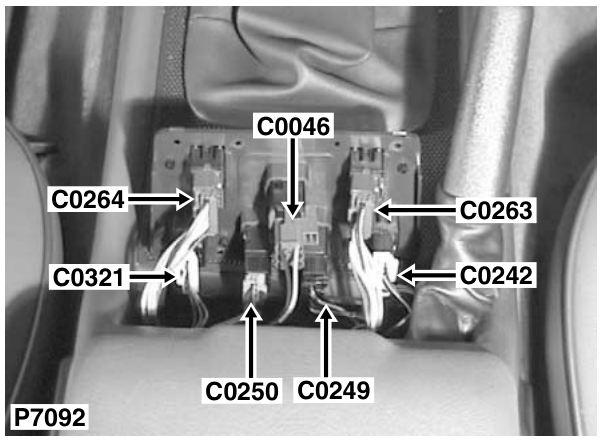

Location: Beneath centre console
Colour: WHITE Gender: Female
