Land Rover Discovery II Electrical Library (1999-2003)05 · Connectors
05 · General

Description: Unit-Lamp-Interior

Make
Land Rover
Model
Discovery II Electrical Library
Year
1999–2003
Section
C0357 Unit-Lamp-Interior › Description: Unit-Lamp-Interior
ConnectorsDescription: Unit-Lamp-Interior
Cav
1		Col
B		Cct
ALL
Diagram

Description: Unit-Lamp-Interior

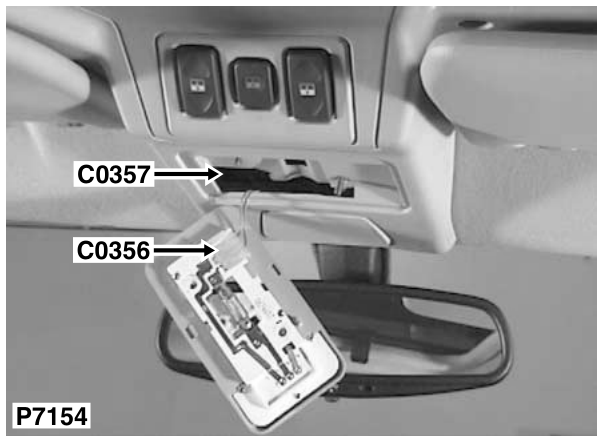

Location: Front of headlining in the centre

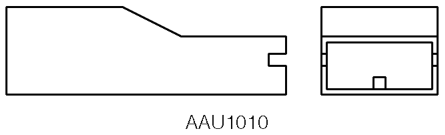

Description: unit-lamp-interior – Location: Front of headlining in the centre

Colour: BLACK Gender: Female
