Colour: GREY Gender: Female
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0378 Main harness to chassis harness › Colour: GREY Gender: Female
ConnectorsColour: GREY Gender: Female
| Cav 1 | Col WB | Cct ALL |
| 2 | NB | ALL |
| 3 | W | ALL |
| 4 | N | ALL |
| 5 | BY | 19 |
| 5 | R | 20 |
| 6 | KO | 19 |
| 6 | RB | 20 |
| 7 | NK | 19 |
| 7 | GK | 20 |
| 8 | SG | 13 |
| 9 | SO | 13 |
| 10 | SB | 13 |
| 11 | OG | ALL |
| 12 | KB | ALL |
| 13 | GB | ALL |
| 14 | WU | ALL |

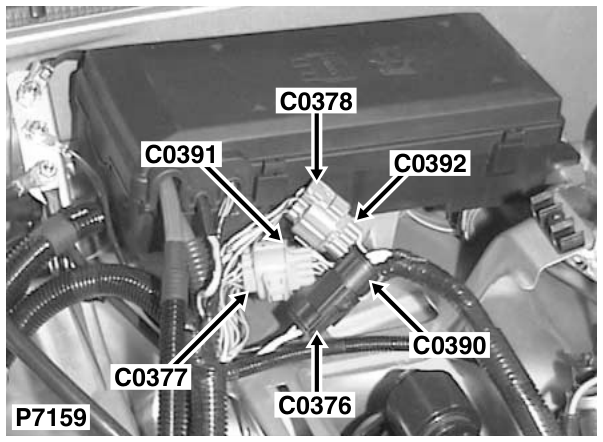

Description: Main harness to chassis harness Location: Beneath engine compartment fusebox
Colour: GREY Gender: Female
