Colour: GREY Gender: Male
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0392 Chassis harness to main harness › Colour: GREY Gender: Male
ConnectorsColour: GREY Gender: Male
| Cav 1 | Col W | Cct ALL |
| 2 | W | ALL |
| 3 | W | ALL |
| 4 | W | ALL |
| 5 | BY | 18 |
| 5 | R | 21 |
| 6 | KO | 18 |
| 6 | RB | 21 |
| 7 | NK | 18 |
| 7 | GK | 21 |
| 8 | SG | 13 |
| 9 | SO | 13 |
| 10 | SB | 13 |
| 11 | OG | 2 |
| 12 | KB | ALL |
| 13 | GB | ALL |
| 14 | WU | 2 |

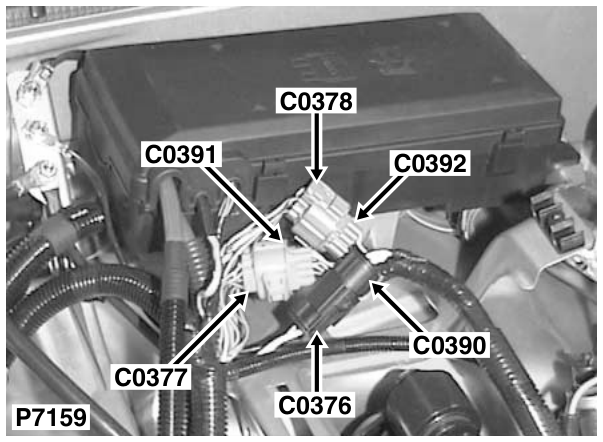

Description: Chassis harness to main harness Location: Beneath engine compartment fusebox
Colour: GREY Gender: Male
