Colour: GREY Gender: Female
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0448 Main harness to engine harness › Colour: GREY Gender: Female
ConnectorsColour: GREY Gender: Female
| Cav 1 | Col WN | Cct 2 |
| 2 | NY | 2 |
| 3 | NK | 2 |
| 4 | W | 2 |
| 5 | W | 4 |
| 6 | Y | 4 |
| 7 | B | 2 |
| 8 | RK | 2 |

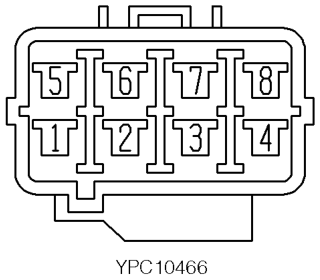

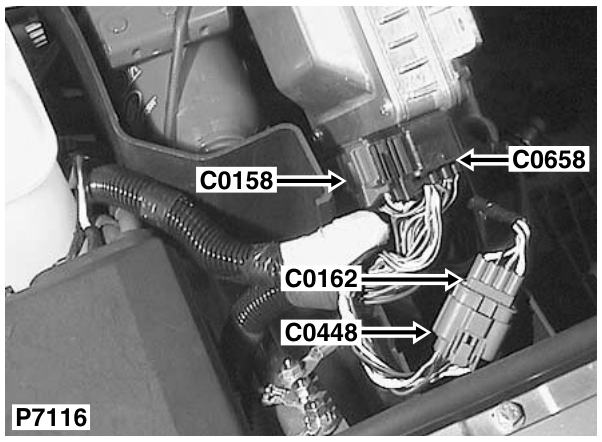

Description: Main harness to engine harness Location: RH side of engine compartment
Colour: GREY Gender: Female
