Description: Lamp-Tail-RH
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0489 Lamp-Tail-RH › Description: Lamp-Tail-RH

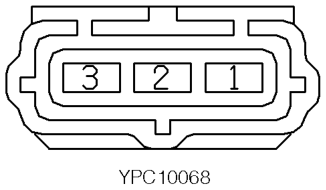

ConnectorsDescription: Lamp-Tail-RH
| Cav 1 | Col GN | Cct ALL |
| 2 | B | ALL |
| 3 | RY | 1 |
Description: Lamp-Tail-RH

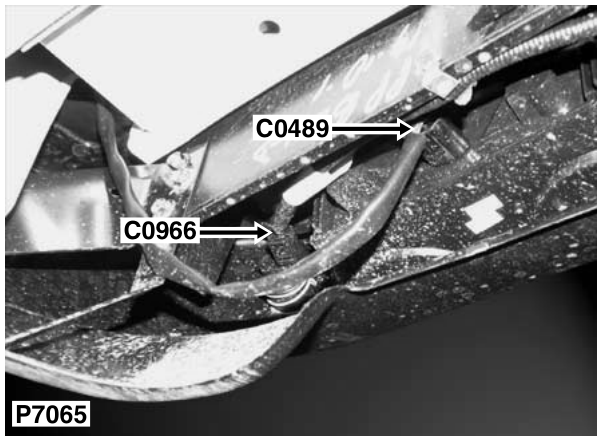

Location: RH rear of vehicle
Colour: BLACK Gender: Female
