Description: Amplifier-Power-ICE

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0491 Amplifier-Power-ICE › Description: Amplifier-Power-ICE

ConnectorsDescription: Amplifier-Power-ICE

Cav 1	Col NB	Cct ALL
2	PB	25
2	WB	26
3	OB	ALL
4	OK	ALL
5	LGP	24
7	B	25
8	R	24
9	G	ALL
9	Y	26
10	RU	24
11	KB	25
12	RB	25
13	SP	24
15	SG	26
16	W	24
17	S	ALL
17	O	26
20	KG	26
21	SR	24
22	KG	ALL
23	KR	ALL
24	WB	25
24	KB	26
25	RB	ALL
26	B	24
29	P	24
30	O	ALL
30	S	26
31	SO	24
32	SK	24
33	YK	25
34	YB	25
37	U	24
38	Y	ALL
38	G	26
39	YK	ALL

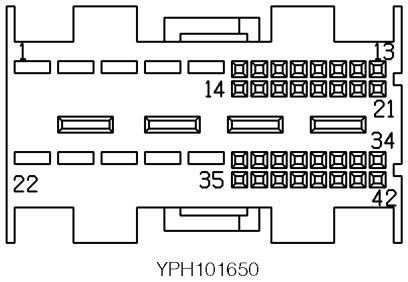

Description: Amplifier-Power-ICE

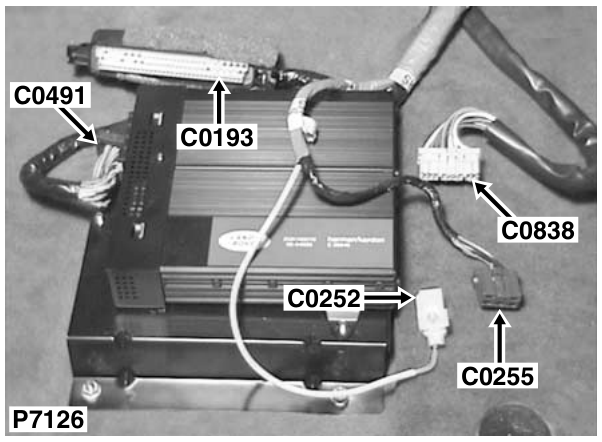

Location: Beneath LH seat

Colour: BLACK Gender: Female
