Description: Modulator-ABS - LHD
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0501 Modulator-ABS - LHD › Description: Modulator-ABS - LHD
ConnectorsDescription: Modulator-ABS - LHD
| Cav 1 | Col SW | Cct ALL |
| 2 | SR | ALL |
| 4 | SN | ALL |
| 5 | SY | ALL |
| 8 | BS | ALL |
| 9 | YG | ALL |
| 10 | SP | ALL |
| 11 | SK | ALL |
| 12 | SU | ALL |
| 13 | SG | ALL |

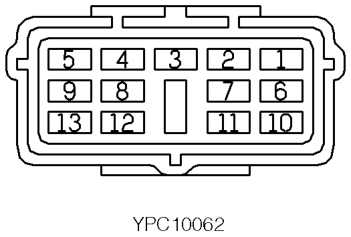

Description: Modulator-ABS - LHD

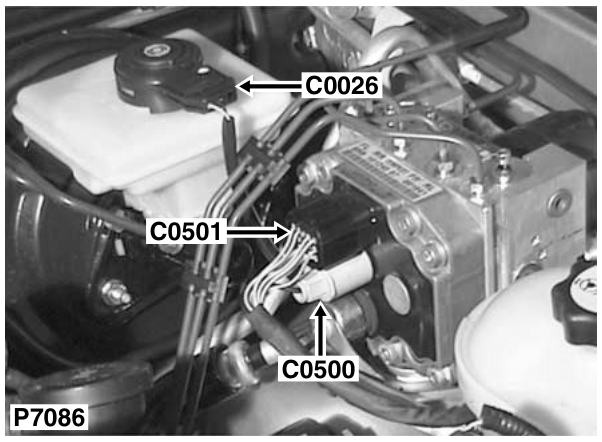

Location: Rear LH side of engine compartment
Colour: BLACK Gender: Female
