Colour: BLACK Gender: Female

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0504 ECU-Self-levelling/ABS (SLABS) › Colour: BLACK Gender: Female

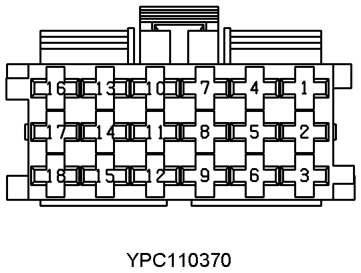

ConnectorsColour: BLACK Gender: Female

Cav 1	Col NK	Cct ALL
2	LG	ALL
3	KG	ALL
4	RG	3
5	K	ALL
7	GN	ALL
8	NR	ALL
9	KO	ALL
10	SP	ALL
11	RK	ALL
12	B	ALL
13	WU	ALL
14	PS	ALL
15	GB	9
16	WY	ALL
17	WK	ALL
18	WR	ALL

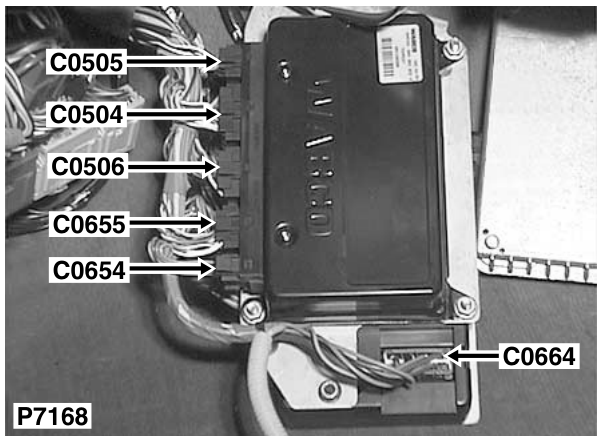

Description: ECU-Self-levelling/ABS (SLABS) Location: Behind passenger side of fascia

Colour: BLACK Gender: Female

05 General
