Colour: LIGHT GREY Gender: Female
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0570 Fuse box-Engine compartment › Colour: LIGHT GREY Gender: Female

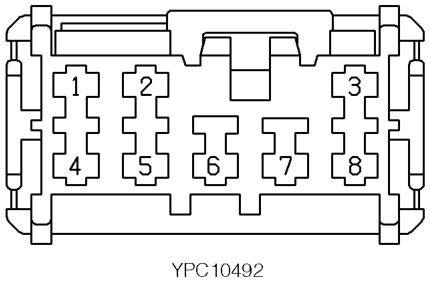

ConnectorsColour: LIGHT GREY Gender: Female
| Cav 1 | Col NK | Cct ALL |
| 2 | GW | ALL |
| 3 | BO | 18 |
| 3 | GU | ALL |
| 4 | UR | ALL |
| 5 | NK | ALL |
| 7 | BG | ALL |
| 8 | PY | ALL |

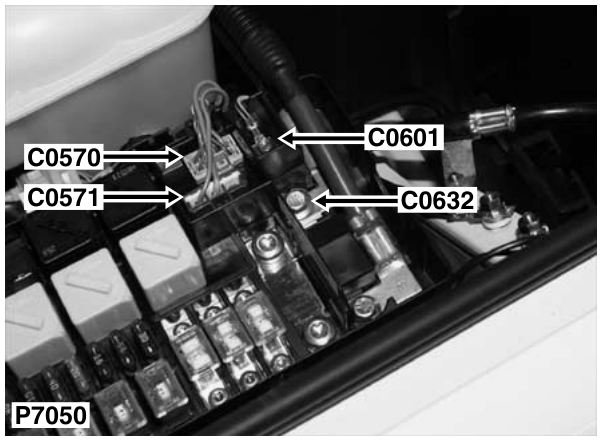

Description: Fuse box-Engine compartment Location: Front RH side of engine compartment
Colour: LIGHT GREY Gender: Female
