Colour: LIGHT GREY Gender: Female

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0573 Fuse box-Engine compartment › Colour: LIGHT GREY Gender: Female

ConnectorsColour: LIGHT GREY Gender: Female

Cav 2	Col NK	Cct 20
3	NK	ALL
5	WR	ALL
7	BO	ALL
8	KN	41
9	UP	ALL
11	BP	2
11	GO	3
12	UR	2
15	LG	ALL
16	B	ALL
17	LG	ALL
18	UY	ALL

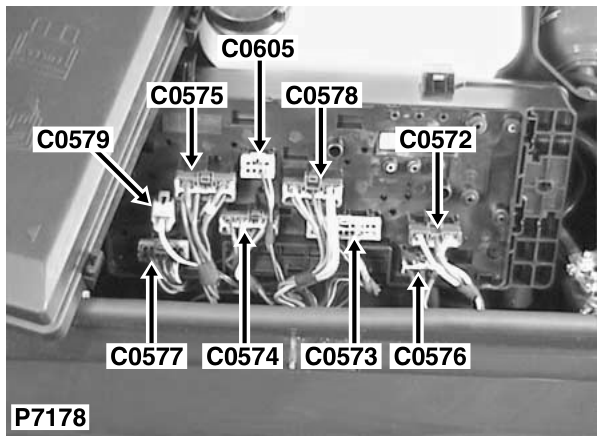

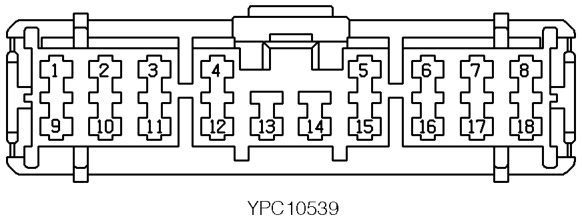

Description: Fuse box-Engine compartment Location: Beneath engine compartment fusebox

Colour: LIGHT GREY Gender: Female

05 General
