Colour: LIGHT GREY Gender: Female
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0577 Fuse box-Engine compartment › Colour: LIGHT GREY Gender: Female
ConnectorsColour: LIGHT GREY Gender: Female
| Cav 1 | Col BG | Cct 15 |
| 2 | BS | ALL |
| 3 | NB | ALL |
| 4 | PN | ALL |
| 5 | PN | ALL |
| 6 | WO | ALL |
| 7 | NP | 13 |
| 8 | PG | ALL |
| 9 | BR | 10 |
| 11 | PG | ALL |
| 12 | PO | ALL |

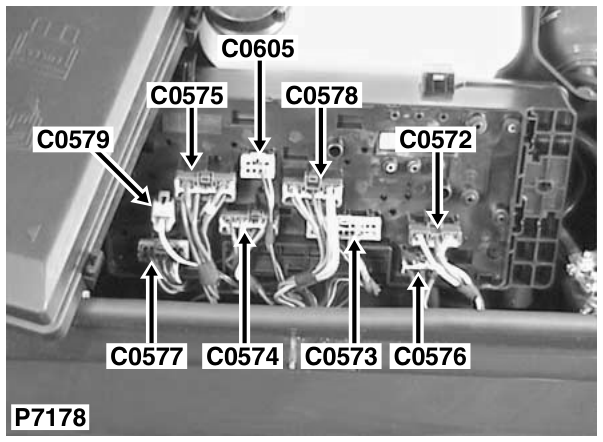

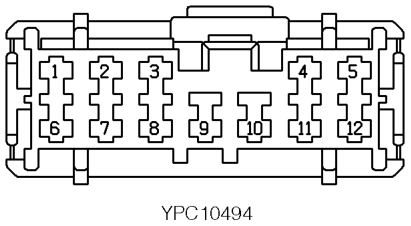

Description: Fuse box-Engine compartment Location: Beneath engine compartment fusebox
Colour: LIGHT GREY Gender: Female
