Colour: LIGHT GREY Gender: Female

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

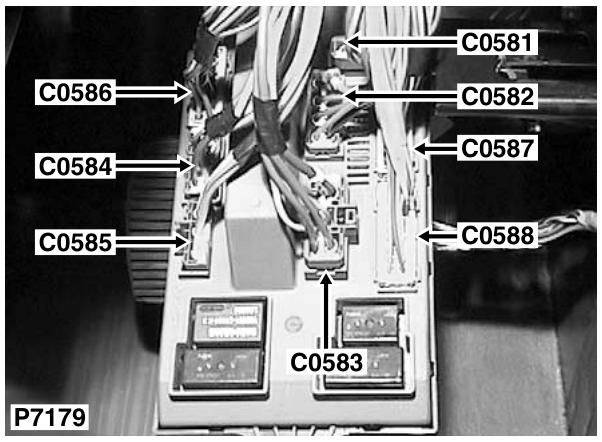

C0587 Fuse box-Passenger compartment › Colour: LIGHT GREY Gender: Female

ConnectorsColour: LIGHT GREY Gender: Female

Cav 1	Col UB	Cct ALL
2	LG	ALL
3	RB	ALL
4	GY	3
5	GU	ALL
6	P	ALL
7	LGW	ALL
8	GK	ALL
9	UK	ALL
10	WR	ALL
11	KS	ALL
12	GR	ALL
13	GW	ALL
14	GN	3
15	GO	10
16	RU	37
16	UY	ALL
17	SK	ALL
18	B	ALL

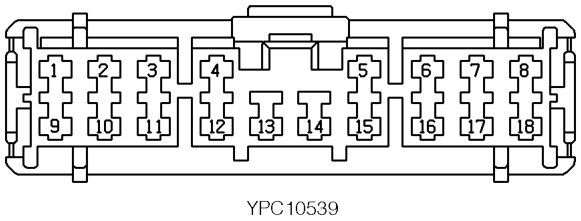

Description: Fuse box-Passenger compartment Location: Behind passenger compartment fusebox

Colour: LIGHT GREY Gender: Female
