Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0635 Engine control module (ECM) › Colour: BLACK Gender: Female

ConnectorsColour: BLACK Gender: Female

Cav 1	Col WU	Cct 23
5	BG	18
7	WU	23
8	RB	23
9	RB	ALL
10	RB	ALL
11	RB	23
13	WO	ALL
14	G	23
15	O	ALL
16	U	ALL
17	Y	23
18	UP	ALL
19	WO	ALL
21	SG	18
23	UR	ALL
24	KO	18

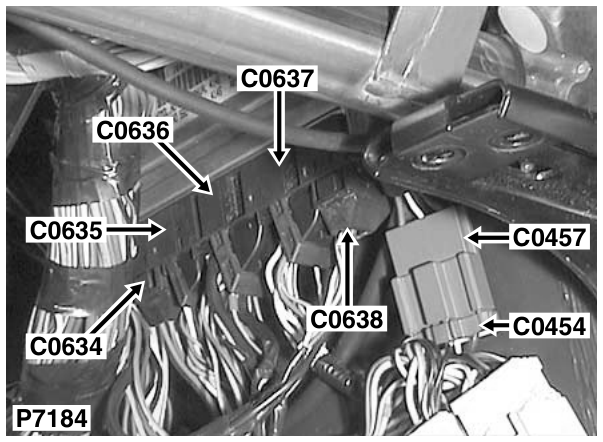

Description: Engine control module (ECM) Location: Behind RH side of fascia

Colour: BLACK Gender: Female

05 General
