Colour: BLACK Gender: Female

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0637 Engine control module (ECM) › Colour: BLACK Gender: Female

ConnectorsColour: BLACK Gender: Female

Cav 8	Col GS	Cct 3
9	R	20
12	GB	18
14	GK	20
16	YS	ALL
17	WS	3
20	RS	3
22	KG	3
29	BS	3
31	OG	19
32	K	3
33	LGS	3
34	RG	3
36	W	5
37	Y	5
38	PW	3

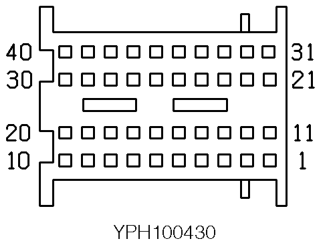

Description: Engine control module (ECM) Location: Behind RH side of fascia

Colour: BLACK Gender: Female
