Colour: BLACK Gender: Female
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0678 Gearbox harness to main harness › Colour: BLACK Gender: Female

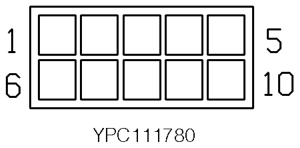

ConnectorsColour: BLACK Gender: Female
| Cav 1 | Col OB | Cct ALL |
| 2 | OK | ALL |
| 3 | W | ALL |
| 4 | UG | ALL |
| 5 | UW | ALL |
| 6 | UB | ALL |
| 7 | UP | ALL |
| 8 | BK | ALL |
| 9 | RK | ALL |
| 10 | RU | ALL |

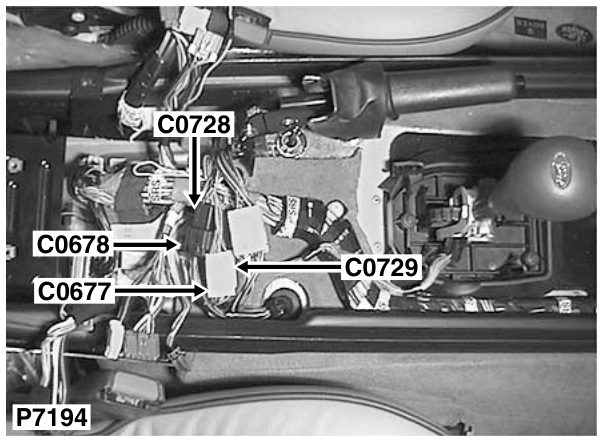

Description: Gearbox harness to main harness Location: Beneath centre console
Colour: BLACK Gender: Female
